DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

PowersHydroGuard PB410PB413

Powers Pressure Balancing Mixing Valve (HydroGuard). Model PB410. Delivers predetermined water temperature compensating for pressure fluctuations; Features poppet-type equalizing valve in replaceable cartridge; Adjustable metal-to-metal temperature limit stop prevents scalding; Maximum hot water supply temperature 190°F (88°C). material: Cast brass

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFPB413.pdfData sheet

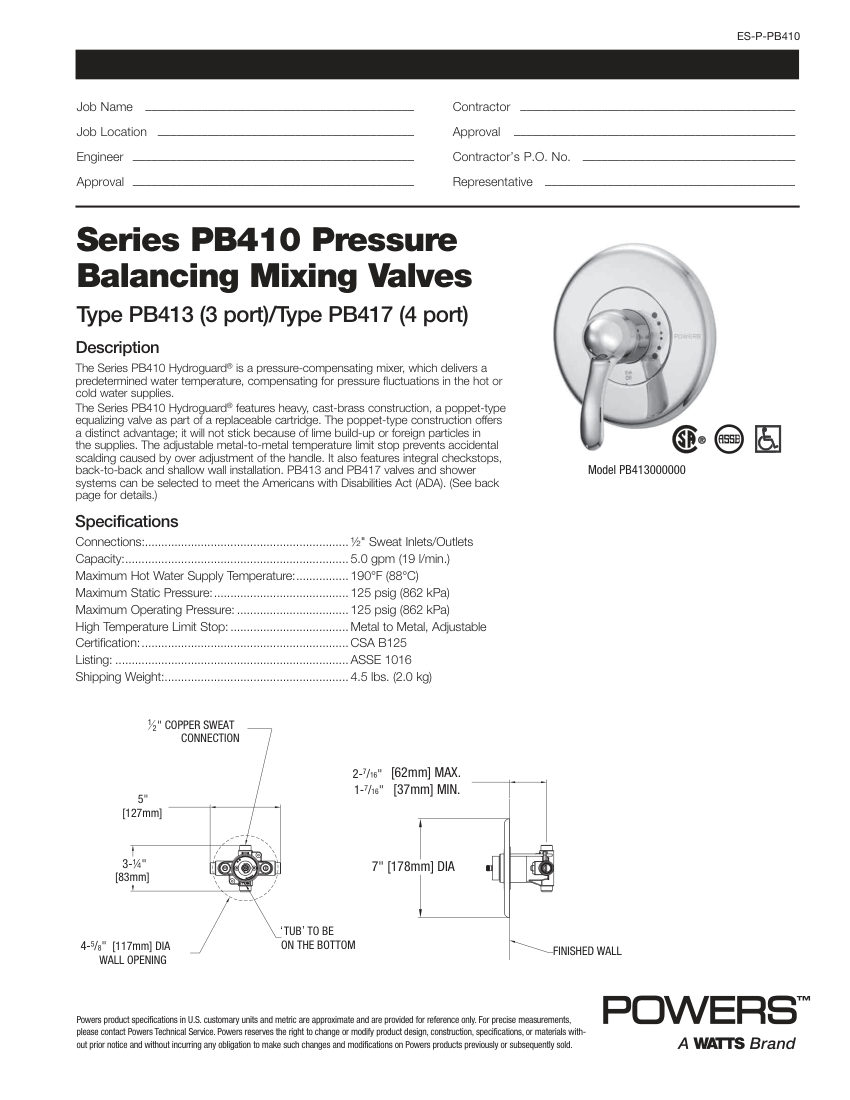

Powers PB413 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Powers
Catalog no.
PB413
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberPB413
DescriptionPowers Pressure Balancing Mixing Valve (HydroGuard). Model PB410. Delivers predetermined water temperature compensating for pressure fluctuations; Features poppet-type equalizing valve in replaceable cartridge; Adjustable metal-to-metal temperature limit stop prevents scalding; Maximum hot water supply temperature 190°F (88°C). material: Cast brass
Connection size1/2"
End connectionSweat
Pressure Rating125 psig
Flow Rate5.0 gpm
MountingBack-to-back and shallow wall.

Also cataloged as: PB413000000, PB413-J, PB413-K, PB413-M, PB413-G, PB413-H, PB413-1, PB413-2, PB413-4, PB413-5, PB413-Q
