DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

PowersPowers ES-P-SF-LFMM430-BB

Powers Tempering Valve (HydroGuard XP Master). Model LFMM430. Maximum Hot Water Supply Temperature: 200°F (93°C); Temperature Adjustment Range: 90-160°F (32-71°C) Standard; Hot Water Inlet Temperature Range: 120-180°F (49-82°C); Cold Water Inlet Temperature Range: 40-80°F (4-27°C). material: Lead Free

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFPowers-ES-P-SF-LFMM430-BB.pdfData sheet

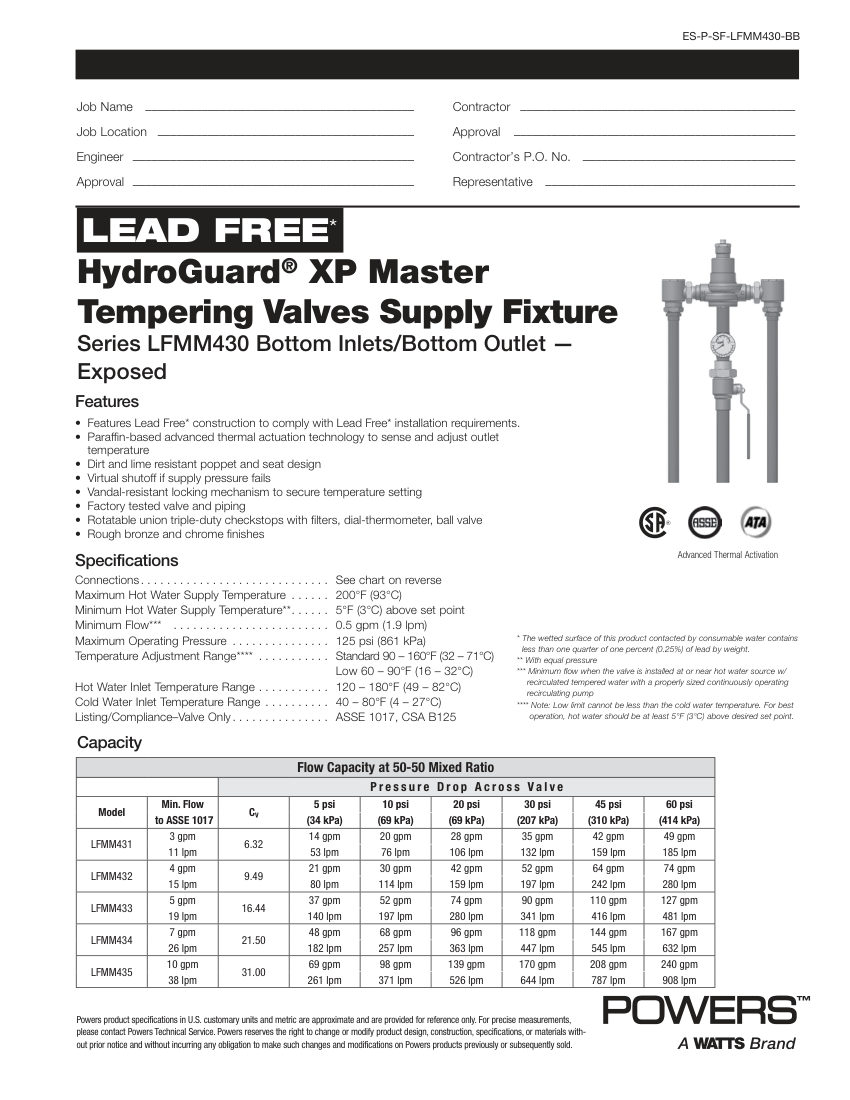

Powers Powers ES-P-SF-LFMM430-BB cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Powers
Catalog no.
Powers ES-P-SF-LFMM430-BB
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberPowers ES-P-SF-LFMM430-BB
DescriptionPowers Tempering Valve (HydroGuard XP Master). Model LFMM430. Maximum Hot Water Supply Temperature: 200°F (93°C); Temperature Adjustment Range: 90-160°F (32-71°C) Standard; Hot Water Inlet Temperature Range: 120-180°F (49-82°C); Cold Water Inlet Temperature Range: 40-80°F (4-27°C). material: Lead Free
End connectionBottom Inlets/Bottom Outlet
Pressure Rating125 psi (861 kPa)
Flow Rate3-10 gpm (11-38 lpm) min flow
FinishRough bronze and chrome
MountingExposed.
