PowersPowers ETV200 Cabinet - Top Inlet/Top Outlet - Wall Mounted

Powers Emergency Tempering Valve (HydroGuard XP Series). Model ETV200. Maximum Operating Pressure: 125 psi (861 kPa); Maximum Hot Water Temperature: 180°F (82°C)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFPowers-ETV200-Cabinet---Top-Inlet-Top-Outlet---Wall-Mounted.pdfData sheet

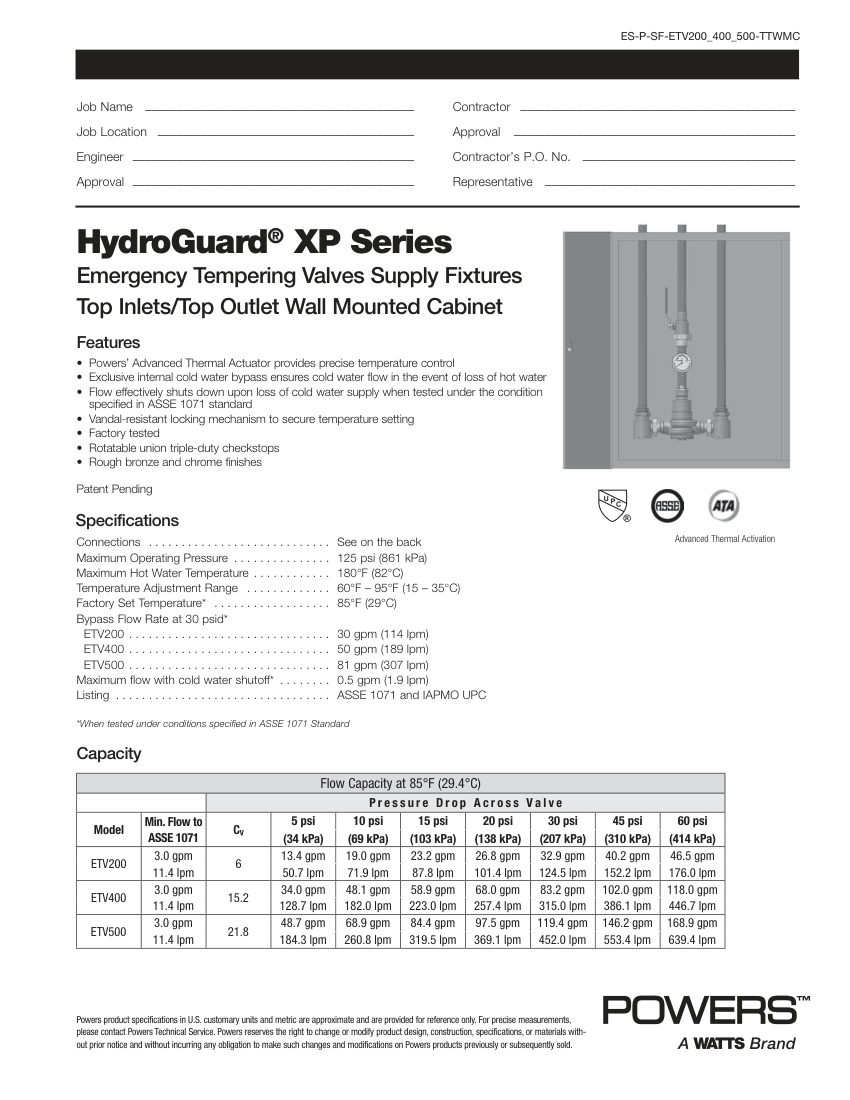

Powers Powers ETV200 Cabinet - Top Inlet/Top Outlet - Wall Mounted cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Powers
Catalog no.
Powers ETV200 Cabinet - Top Inlet/Top Outlet - Wall Mounted
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberPowers ETV200 Cabinet - Top Inlet/Top Outlet - Wall Mounted
DescriptionPowers Emergency Tempering Valve (HydroGuard XP Series). Model ETV200. Maximum Operating Pressure: 125 psi (861 kPa); Maximum Hot Water Temperature: 180°F (82°C)
Factory Set Temperature85°F (29°C); Temperature Adjustment Range: 60°F – 95°F (15 – 35°C). material: Bronze
End connectionRotatable union triple-duty checkstops
Pressure Rating125 psi (861 kPa)
Flow Rate30 gpm (114 lpm) bypass at 30 psid
FinishRough bronze and chrome
MountingWall Mounted Cabinet.
