PowersPowers ETV200 Exposed - Bottom Inlet/Side Outlet
Powers Emergency Tempering Valve (HydroGuard XP Series). Model ETV200. Maximum hot water temperature 180°F (82°C); Temperature adjustment range 60–95°F (15–35°C); Factory set temperature 85°F (29°C); CV rating 6. material: Bronze
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Powers
- Catalog no.
- Powers ETV200 Exposed - Bottom Inlet/Side Outlet
- Product type
- Plumbing
- MasterFormat
- 22

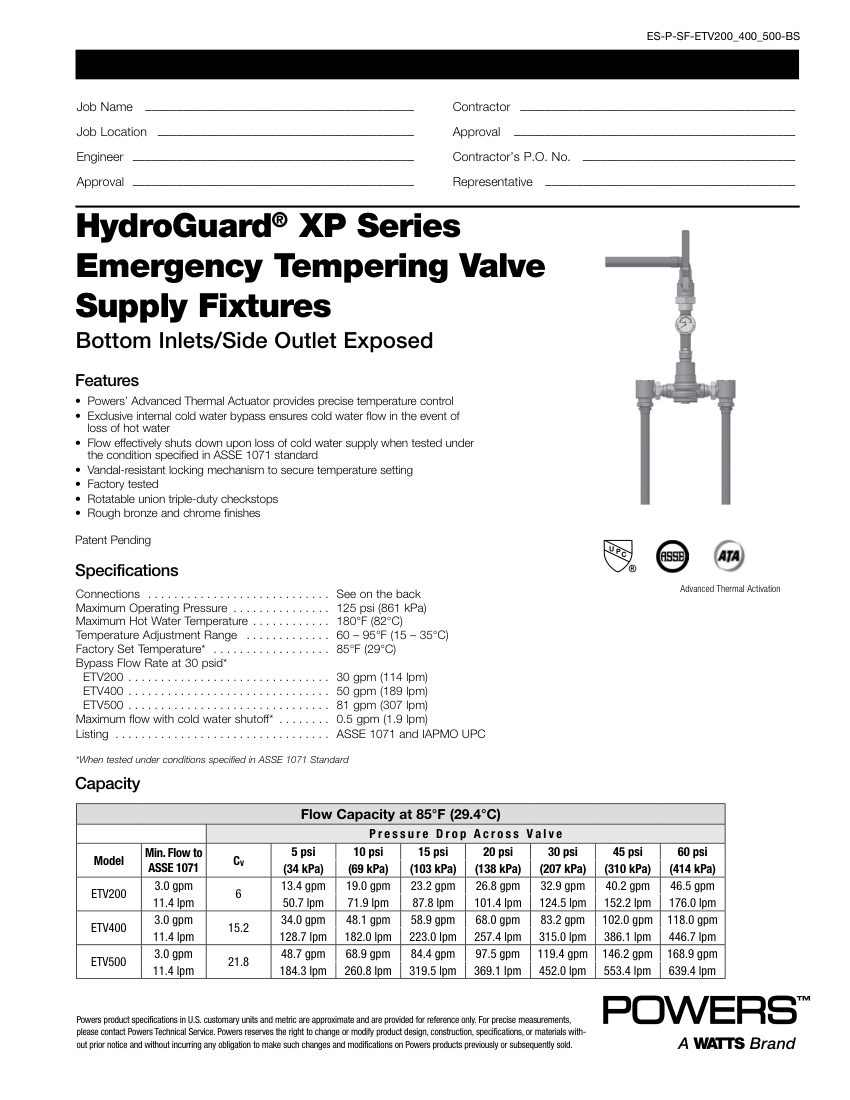

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | Powers ETV200 Exposed - Bottom Inlet/Side Outlet |
|---|---|
| Description | Powers Emergency Tempering Valve (HydroGuard XP Series). Model ETV200. Maximum hot water temperature 180°F (82°C); Temperature adjustment range 60–95°F (15–35°C); Factory set temperature 85°F (29°C); CV rating 6. material: Bronze |
| Connection size | 1" inlets, 3/4" outlet |
| End connection | Rotatable union triple-duty checkstops |
| Pressure Rating | 125 psi (861 kPa) |
| Flow Rate | 30 gpm (114 lpm) bypass at 30 psid |
| Finish | Rough bronze and chrome. |
