PowersPowers ETV200 Exposed - Top Inlet/Top Outlet
Powers Emergency Tempering Valve (HydroGuard XP Series). Model ETV200. Maximum operating pressure 125 psi (861 kPa); Temperature adjustment range 60°F – 95°F (15 – 35°C); Factory set temperature 85°F (29°C); CV rating 6. material: Bronze
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Powers
- Catalog no.
- Powers ETV200 Exposed - Top Inlet/Top Outlet
- Product type
- Plumbing
- MasterFormat
- 22

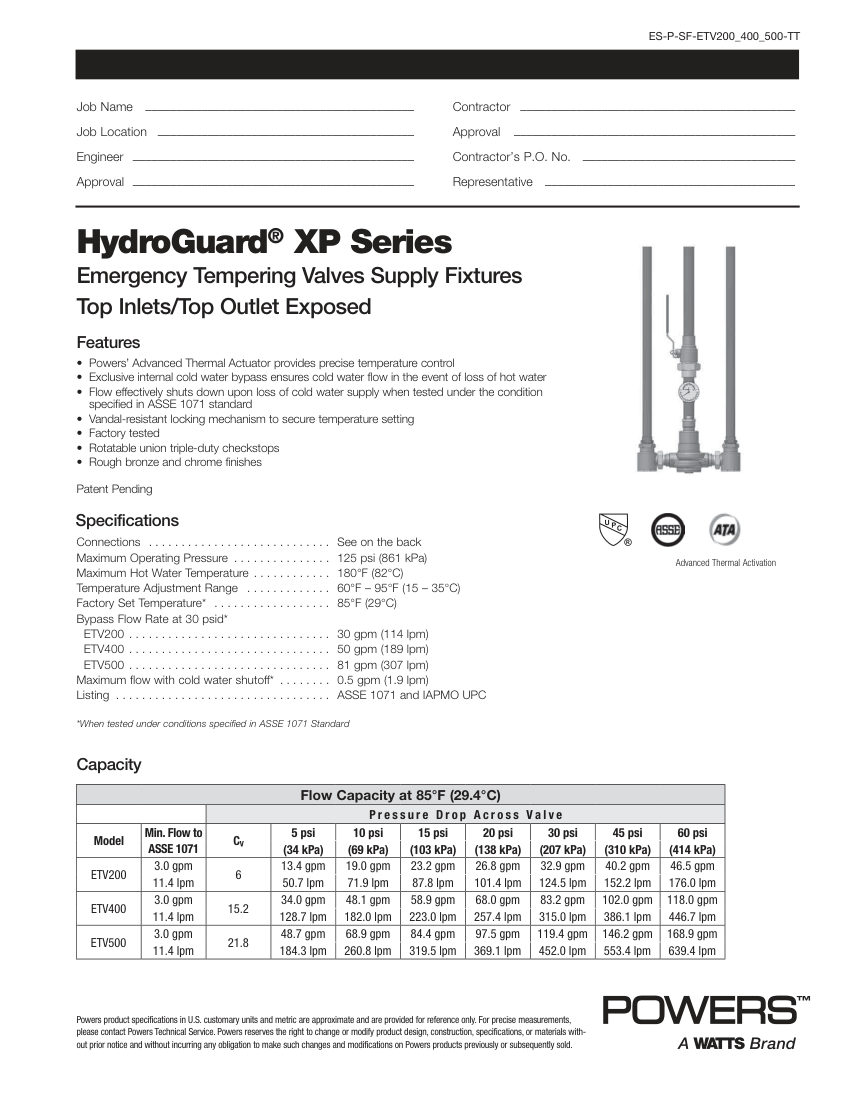

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | Powers ETV200 Exposed - Top Inlet/Top Outlet |
|---|---|
| Description | Powers Emergency Tempering Valve (HydroGuard XP Series). Model ETV200. Maximum operating pressure 125 psi (861 kPa); Temperature adjustment range 60°F – 95°F (15 – 35°C); Factory set temperature 85°F (29°C); CV rating 6. material: Bronze |
| Connection size | 3/4" NPT inlets, 1" NPT outlets |
| End connection | NPT |
| Pressure Rating | 125 psi (861 kPa) |
| Flow Rate | 30 gpm (114 lpm) bypass at 30 psid |
| Finish | Rough bronze and chrome. |
