PowersPowerStation XP Single and Multi-Valve - Single Valve

Powers Thermostatic Mixing Valve (PowerStation XP). Model ES-P-SF-LFSVPS. Maximum Operating Pressure: 125 psi (861 kPa); Temperature Adjustment Range: 90 – 160°F (32 – 71°C); Hot Water Inlet Temperature Range: 120 – 180°F (49 – 82°C)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFPowerStation-XP-Single-and-Multi-Valve---Single-Valve.pdfData sheet

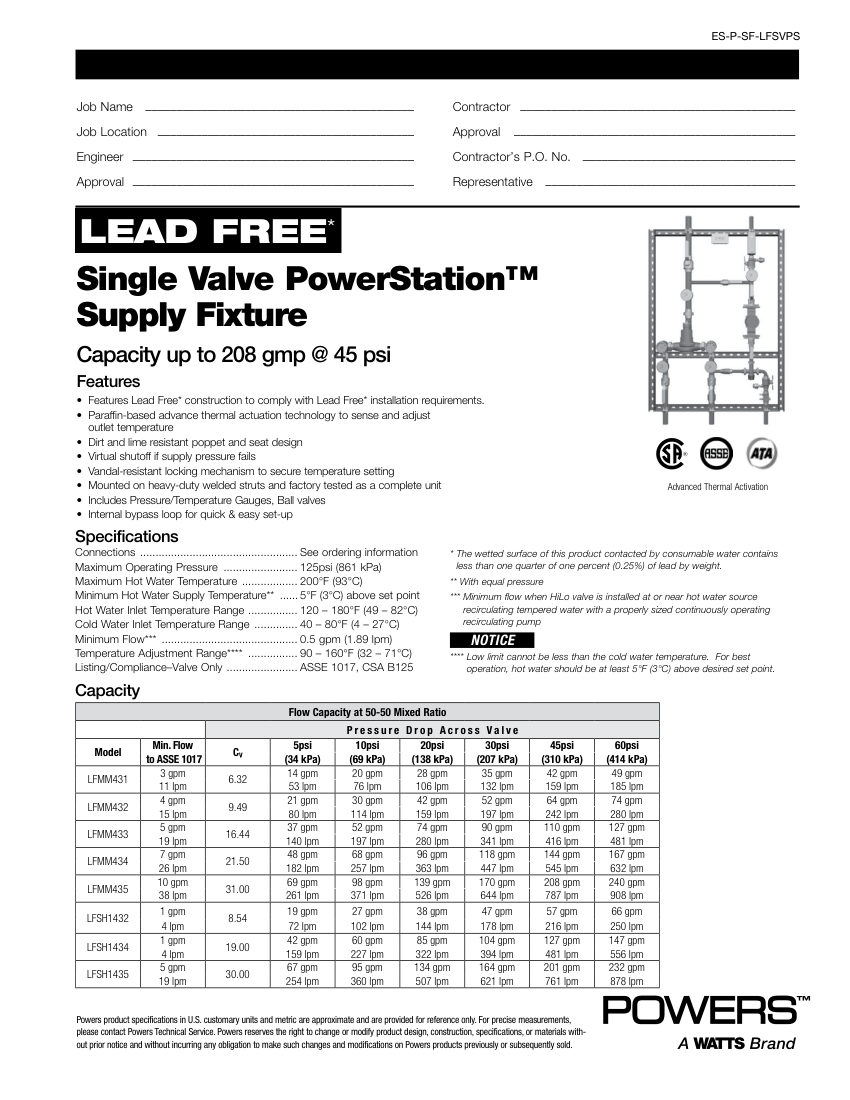

Powers PowerStation XP Single and Multi-Valve - Single Valve cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Powers
Catalog no.
PowerStation XP Single and Multi-Valve - Single Valve
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberPowerStation XP Single and Multi-Valve - Single Valve
DescriptionPowers Thermostatic Mixing Valve (PowerStation XP). Model ES-P-SF-LFSVPS. Maximum Operating Pressure: 125 psi (861 kPa); Temperature Adjustment Range: 90 – 160°F (32 – 71°C); Hot Water Inlet Temperature Range: 120 – 180°F (49 – 82°C)
Minimum Flow0.5 gpm (1.89 lpm). material: Lead Free
Pressure Rating125 psi (861 kPa)
Flow RateUp to 208 gpm @ 45 psi
MountingHeavy-duty welded struts
ComplianceASSE 1017, CSA B125.
