DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Powers

Powers Mechanical Metering Valve (Metering Valve). Model 141-820. Self-closing with adjustable timer up to 60 seconds; Tamper-resistant chrome plated brass push-button; Replaceable Celcon® cartridge contains all wearing parts; Max inlet temperature 130°F (52°C). material: Cast bronze body, stainless steel escutcheon

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF.pdfData sheet

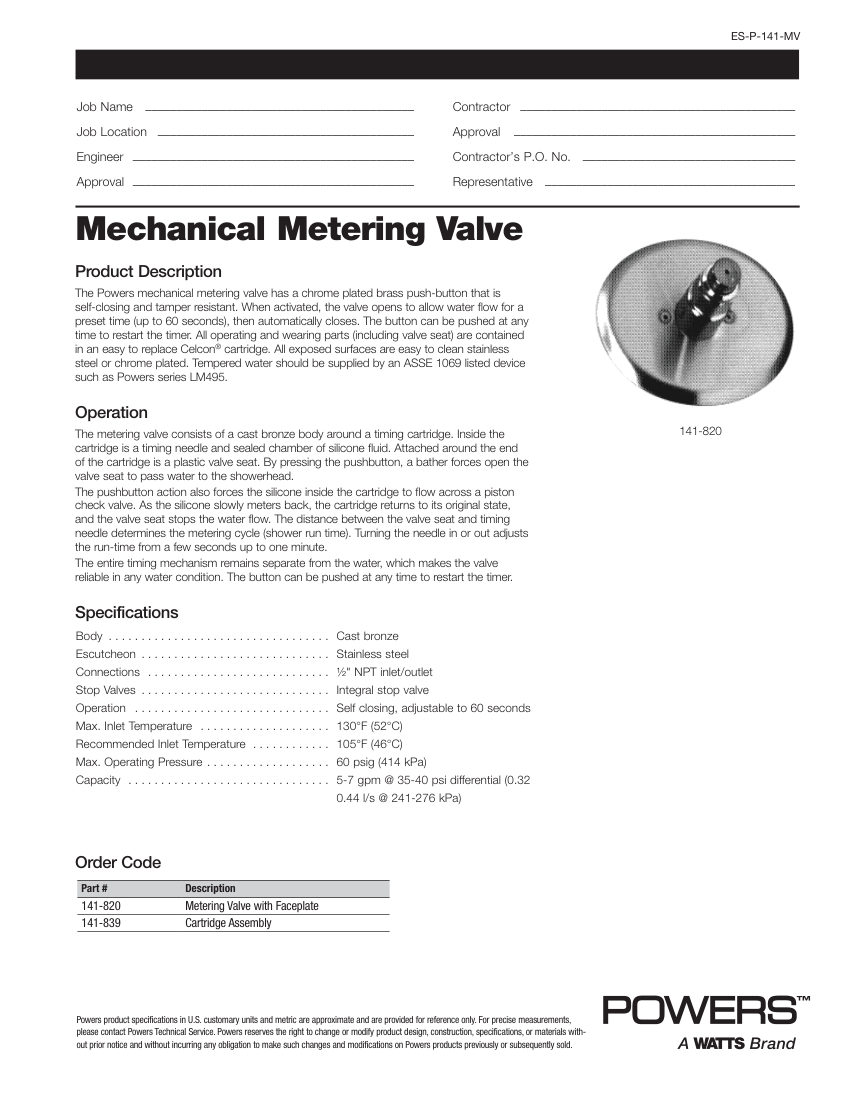

Powers cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Powers
Catalog no.
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number
DescriptionPowers Mechanical Metering Valve (Metering Valve). Model 141-820. Self-closing with adjustable timer up to 60 seconds; Tamper-resistant chrome plated brass push-button; Replaceable Celcon® cartridge contains all wearing parts; Max inlet temperature 130°F (52°C). material: Cast bronze body, stainless steel escutcheon
Connection size1/2" NPT
End connectionNPT
Pressure Rating60 psig (414 kPa)
Flow Rate5-7 gpm @ 35-40 psi differential
FinishStainless steel, chrome plated.
