Powers Combination Valve (Thermostatic Mixing Valve). Model F727/C727. Lead Free; Controls mixed outlet temperature within 10°F (5.5°C) of hot water supply; 1/2" (13 mm) LCD Display accurate to 1/10 of a degree; AAA alkaline battery powered. material: Heavy cast bronze body, brass stem
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Powers
- Catalog no.
- Product type
- Plumbing
- MasterFormat
- 22

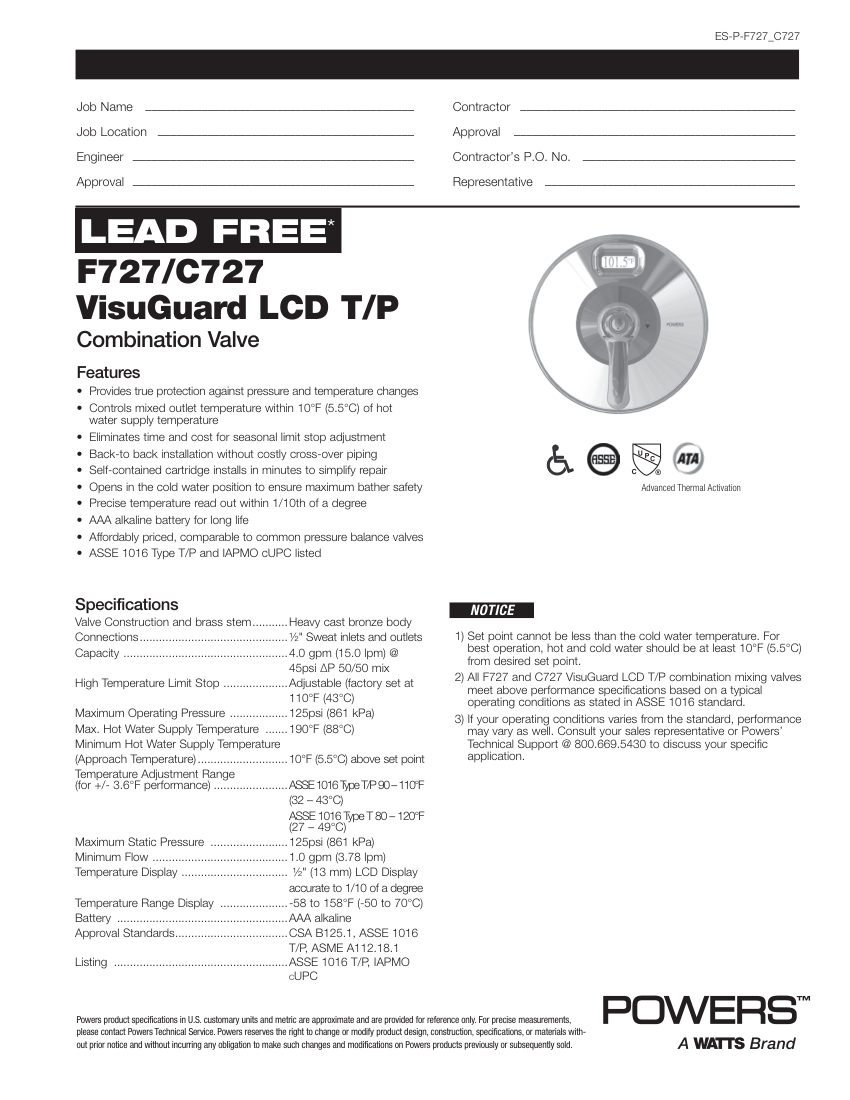

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | |
|---|---|
| Description | Powers Combination Valve (Thermostatic Mixing Valve). Model F727/C727. Lead Free; Controls mixed outlet temperature within 10°F (5.5°C) of hot water supply; 1/2" (13 mm) LCD Display accurate to 1/10 of a degree; AAA alkaline battery powered. material: Heavy cast bronze body, brass stem |
| Connection size | 1/2" |
| End connection | Sweat |
| Pressure Rating | 125psi (861 kPa) |
| Flow Rate | 4.0 gpm (15.0 lpm) @ 45psi ∆P |
| Mounting | Wall. |
