DIV 09 · FINISHESFLOORINGCUT SHEET INDEXED

RoppeRoppe Pinnacle Rubber Butt Toe Wall Base

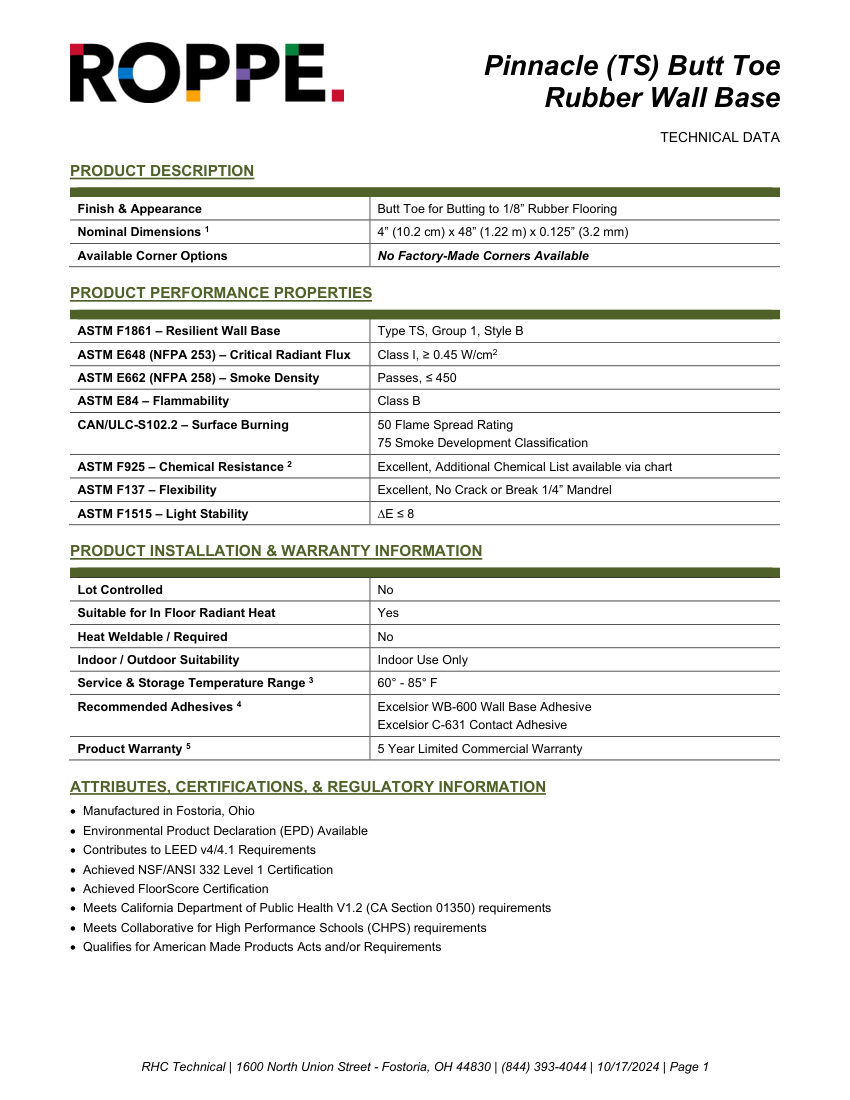

Name: Roppe Roppe Pinnacle Rubber Butt Toe Wall Base
Brand: Roppe
SKU: Roppe Pinnacle Rubber Butt Toe Wall Base

Roppe Rubber Wall Base (Flooring). Model Pinnacle (TS) Butt Toe. Nominal Dimensions: 4" (10.2 cm) x 48" (1.22 m) x 0.125" (3.2 mm)

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	Roppe Pinnacle Rubber Butt Toe Wall Base
Description	Roppe Rubber Wall Base (Flooring). Model Pinnacle (TS) Butt Toe. Nominal Dimensions: 4" (10.2 cm) x 48" (1.22 m) x 0.125" (3.2 mm)
ASTM F1861 Classification	Type TS, Group 1, Style B
Flammability	ASTM E84 Class B; Suitable for In-Floor Radiant Heat: Yes. material: Rubber
Finish	Butt Toe
Mounting	Adhesive
Dimensions	4" x 48" x 0.125"
Compliance	ASTM F1861, ASTM E648, ASTM E662, ASTM E84, CAN/ULC-S102.2, ASTM F925, ASTM F137, ASTM F1515, NSF/ANSI 332, FloorScore.
