RoppeRoppe Pinnacle Rubber Sanitary Toe Wall Base

Roppe Sanitary Toe Wall Base (Flooring & Wall Base). Model Pinnacle (TS). Nominal dimensions: 4" (10.2 cm) x 48" (1.22 m) x 0.125" (3.2 mm); ASTM F1861 Type TS, Group 1, Style B

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFRoppe-Pinnacle-Rubber-Sanitary-Toe-Wall-Base.pdfData sheet

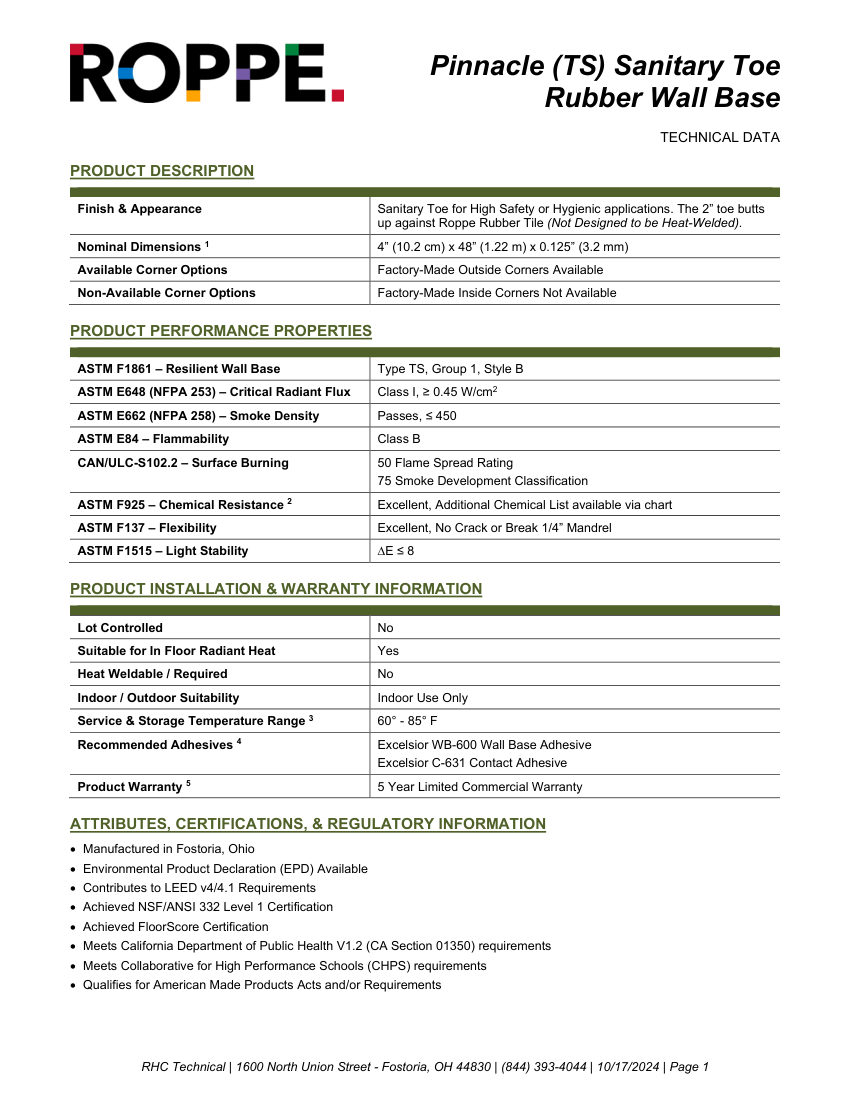

Roppe Roppe Pinnacle Rubber Sanitary Toe Wall Base cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Roppe
Catalog no.
Roppe Pinnacle Rubber Sanitary Toe Wall Base
Product type
Flooring
MasterFormat
09 65 00
Cut sheet
PDF · manufacturer current

Product details

Catalog numberRoppe Pinnacle Rubber Sanitary Toe Wall Base
DescriptionRoppe Sanitary Toe Wall Base (Flooring & Wall Base). Model Pinnacle (TS). Nominal dimensions: 4" (10.2 cm) x 48" (1.22 m) x 0.125" (3.2 mm); ASTM F1861 Type TS, Group 1, Style B
FlammabilityASTM E84 Class B; Indoor use only; suitable for in-floor radiant heat. material: Rubber
FinishSanitary
MountingAdhesive (Excelsior WB-600 or C-631)
Dimensions4" x 48" x 0.125"
ComplianceASTM F1861, ASTM E84 Class B, NSF/ANSI 332 Level 1, FloorScore.
