DIV 7ROOFING/WATERPROOFINGCUT SHEET INDEXED

SikaS-Drain PVC

Sika Prefabricated PVC roof drain (Roof Drainage). Model S-Drain PVC. Resistant to UV exposure; Membrane can be welded directly to the base plate; Compatible with Sarnafil and Sikaplan sheet membranes; Requires S-Leafguard (Art. no. 111185) as system accessory. material: Polyvinyl chloride (PVC)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFS-Drain-PVC.pdfData sheet

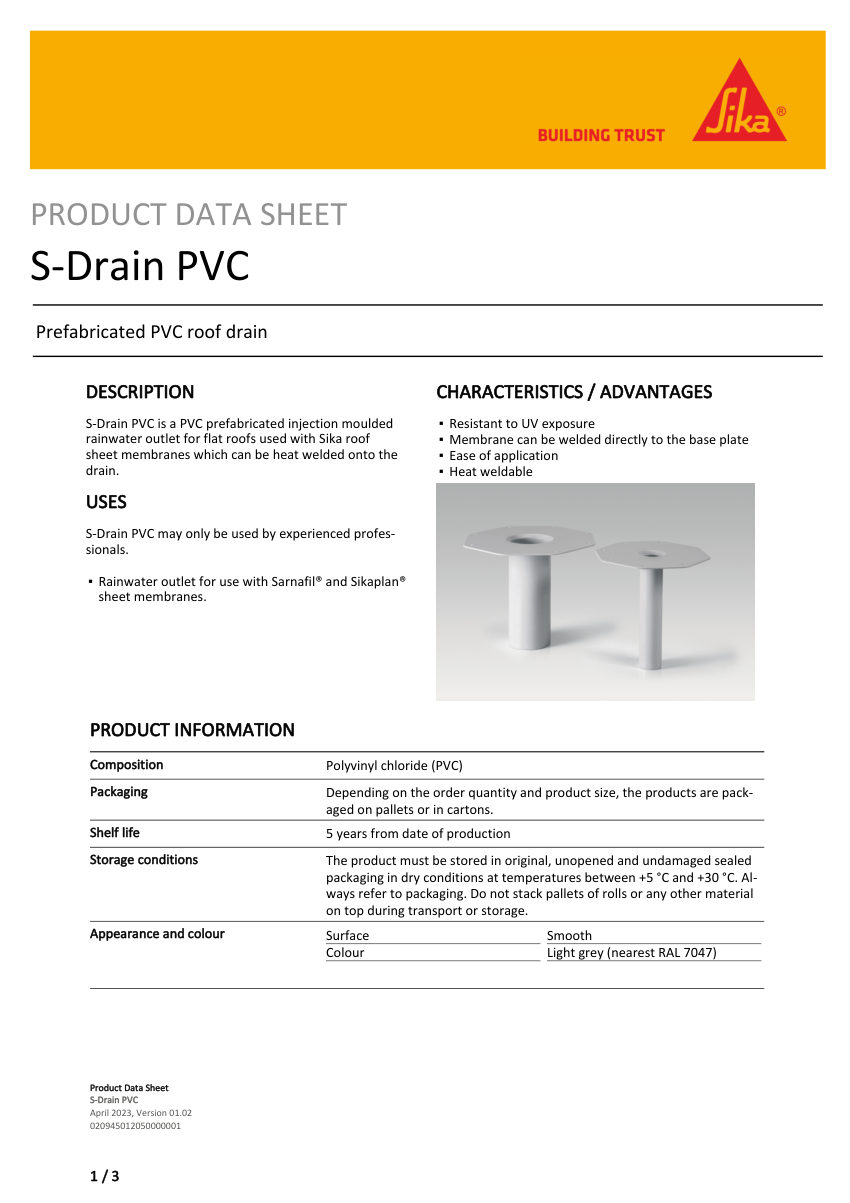

Sika S-Drain PVC cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Sika
Catalog no.
S-Drain PVC
Product type
Roofing/Waterproofing
MasterFormat
7
Cut sheet
PDF · manufacturer current

Product details

Catalog numberS-Drain PVC
DescriptionSika Prefabricated PVC roof drain (Roof Drainage). Model S-Drain PVC. Resistant to UV exposure; Membrane can be welded directly to the base plate; Compatible with Sarnafil and Sikaplan sheet membranes; Requires S-Leafguard (Art. no. 111185) as system accessory. material: Polyvinyl chloride (PVC)
Connection size40-160 mm spigot
End connectionHeat weldable base plate
Flow Rate2.65-16.90 l/s
FinishSmooth, Light grey (RAL 7047)
MountingFlat roofs with Sika roof sheet membranes.
