DIV 7ROOFING/WATERPROOFINGCUT SHEET INDEXED

SikaSarnafil® Décor Profile PVC

Sika PVC Decor Profile (Roofing Membrane Accessories). Model Sarnafil® Décor Profile PVC. Length: 3000 mm (+10 mm / -5 mm)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFSarnafil-D-cor-Profile-PVC.pdfData sheet

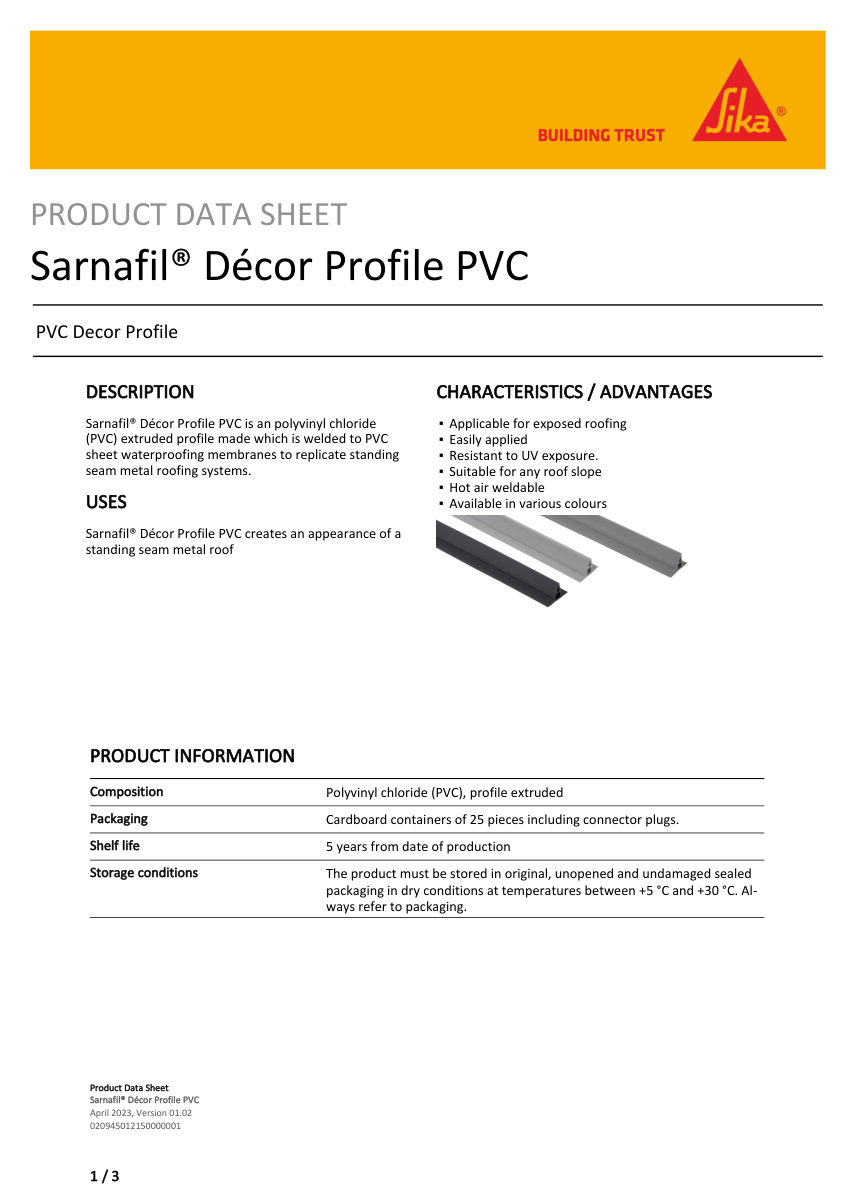

Sika Sarnafil® Décor Profile PVC cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Sika
Catalog no.
Sarnafil® Décor Profile PVC
Product type
Roofing/Waterproofing
MasterFormat
7
Cut sheet
PDF · manufacturer current

Product details

Catalog numberSarnafil® Décor Profile PVC
DescriptionSika PVC Decor Profile (Roofing Membrane Accessories). Model Sarnafil® Décor Profile PVC. Length: 3000 mm (+10 mm / -5 mm)
Width35 mm (+/- 1.3 mm)
Height25 mm (+/- 1.3 mm)
Mass per area~285 g/m. material: Polyvinyl chloride (PVC)
End connectionHot air weldable
FinishSmooth
MountingWelded to PVC sheet waterproofing membranes
Dimensions3000 mm x 35 mm x 25 mm
ComplianceEN ISO 11925-2, EN 13501-1 (Class E), REACH.
