DIV 7ROOFING/WATERPROOFINGCUT SHEET INDEXED

SikaSarnafil® G 410-15 L Felt

Sika PVC Roof Waterproofing Sheet (Roofing Membrane). Model Sarnafil® G 410-15 L Felt. Hot-air weldable; Resistant to permanent UV exposure; Tensile strength ≥ 650 N/50 mm; Mass per area 2.15 kg/m². material: Polyvinyl chloride (PVC) with glass non-woven inlay and polyester fleece backing

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFSarnafil-G-410-15-L-Felt.pdfData sheet

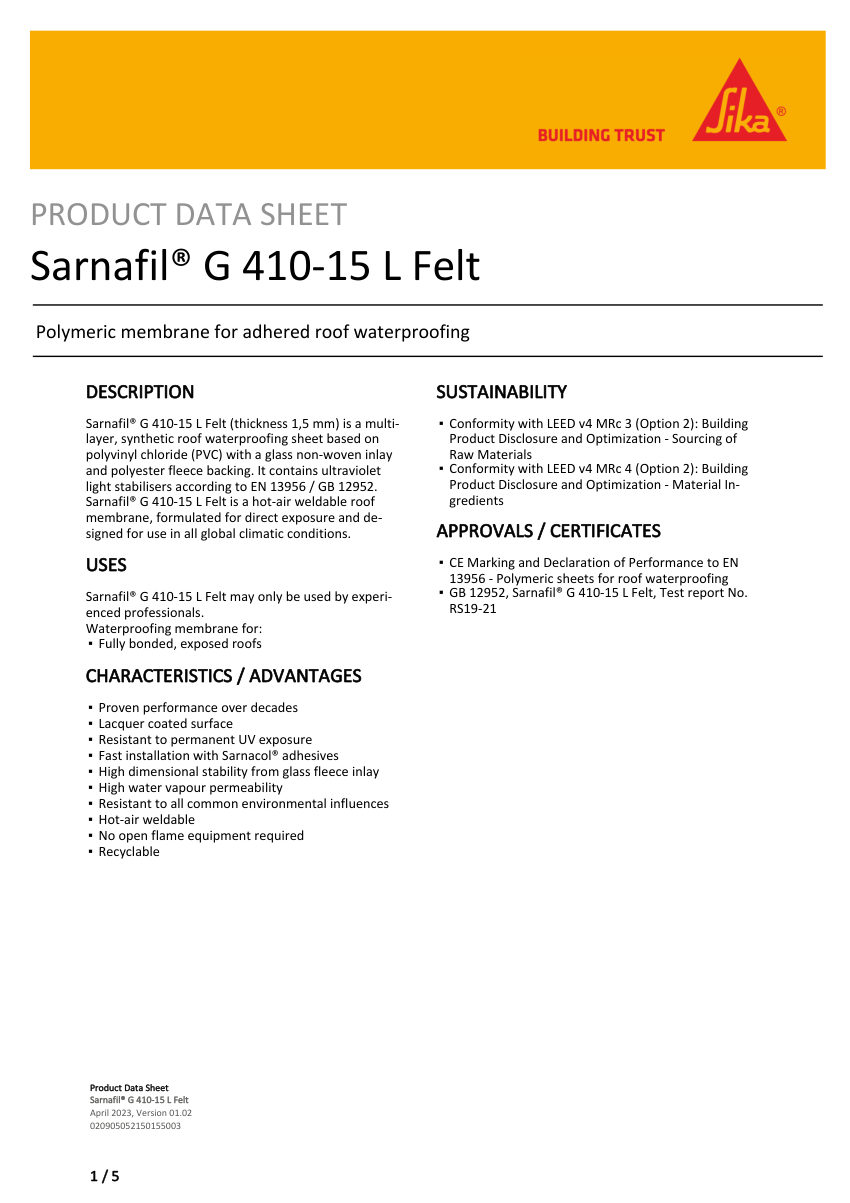

Sika Sarnafil® G 410-15 L Felt cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Sika
Catalog no.
Sarnafil® G 410-15 L Felt
Product type
Roofing/Waterproofing
MasterFormat
7
Cut sheet
PDF · manufacturer current

Product details

Catalog numberSarnafil® G 410-15 L Felt
DescriptionSika PVC Roof Waterproofing Sheet (Roofing Membrane). Model Sarnafil® G 410-15 L Felt. Hot-air weldable; Resistant to permanent UV exposure; Tensile strength ≥ 650 N/50 mm; Mass per area 2.15 kg/m². material: Polyvinyl chloride (PVC) with glass non-woven inlay and polyester fleece backing
FinishMatt
MountingFully bonded, exposed roofs
Dimensions1.5 mm thickness, 2.00 m width, 15.00 m length
ComplianceEN 13956, GB 12952, CE Marking, LEED v4 MRc 3 & 4.
