SikaSika® Anchor-300

Sika Anchor fixation through sheet waterproofing membranes (Sika Anchor). Model Sika® Anchor-300. Hard PVC anchor shaft with Sikaplan® PVC waterproofing membrane flange; Shaft inside thread M16, length 200 mm; Membrane diameter 300 mm, thickness 2.0 mm; Watertightness tested at -0.2 MPa. material: Hard PVC shaft, PVC waterproofing membrane flange

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFSika-Anchor-300.pdfData sheet

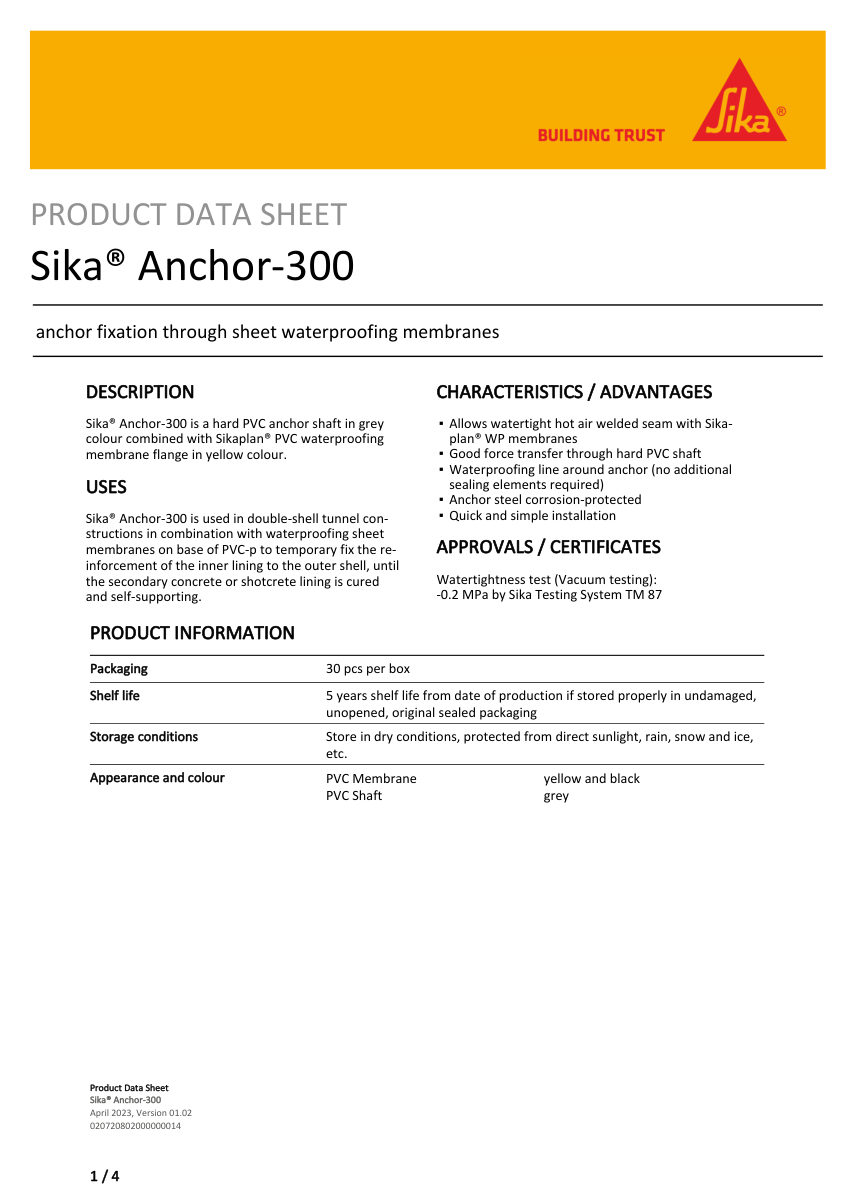

Sika Sika® Anchor-300 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Sika
Catalog no.
Sika® Anchor-300
Product type
Roofing/Waterproofing
MasterFormat
7
Cut sheet
PDF · manufacturer current

Product details

Catalog numberSika® Anchor-300
DescriptionSika Anchor fixation through sheet waterproofing membranes (Sika Anchor). Model Sika® Anchor-300. Hard PVC anchor shaft with Sikaplan® PVC waterproofing membrane flange; Shaft inside thread M16, length 200 mm; Membrane diameter 300 mm, thickness 2.0 mm; Watertightness tested at -0.2 MPa. material: Hard PVC shaft, PVC waterproofing membrane flange
Connection sizeInside Thread M16
Pressure Rating-0.2 MPa (Watertightness test)
FinishGrey shaft, Yellow membrane
MountingDrill hole, inject adhesive, install anchor, weld membrane
DimensionsShaft length 200 mm, Membrane diameter 300 mm, M
