DIV 7ROOFING/WATERPROOFINGCUT SHEET INDEXED

SikaSika® Dilatec® BR-500

Sika PVC multifunctional sealing tape (Sika Dilatec). Model BR-500. Tensile strength > 6.5 N/mm²; Elongation > 200%; Service temperature -10 °C to +40 °C; Watertightness Pass (Method B, 24 h/10 bar). material: PVC, bitumen compatible (PVC-P-BV)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFSika-Dilatec-BR-500.pdfData sheet

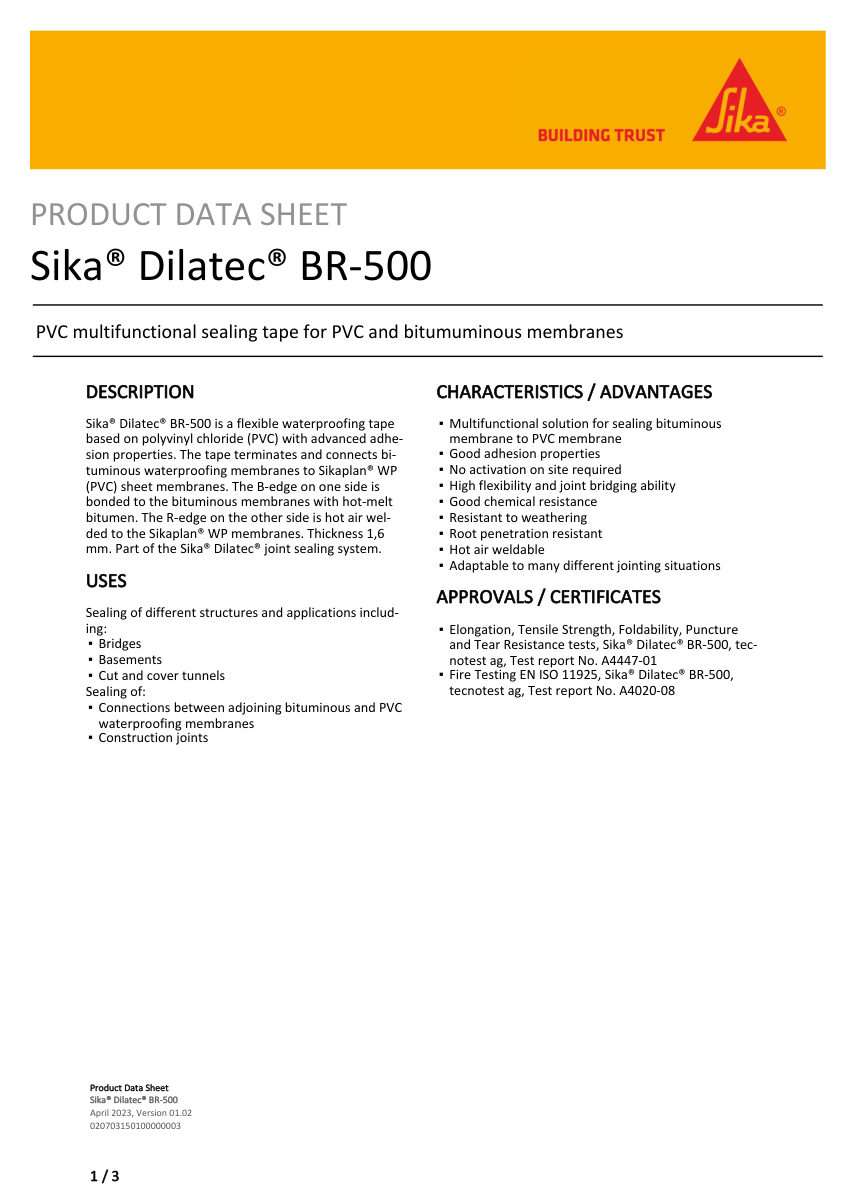

Sika Sika® Dilatec® BR-500 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Sika
Catalog no.
Sika® Dilatec® BR-500
Product type
Roofing/Waterproofing
MasterFormat
7
Cut sheet
PDF · manufacturer current

Product details

Catalog numberSika® Dilatec® BR-500
DescriptionSika PVC multifunctional sealing tape (Sika Dilatec). Model BR-500. Tensile strength > 6.5 N/mm²; Elongation > 200%; Service temperature -10 °C to +40 °C; Watertightness Pass (Method B, 24 h/10 bar). material: PVC, bitumen compatible (PVC-P-BV)
End connectionB-edge (hot-melt bitumen) and R-edge (hot air weld)
FinishTop surface light grey, bottom surface black
MountingSealing of connections between bituminous and PVC membranes
DimensionsWidth 500 mm, Thickness 1.6 mm, Length 30 m per roll
ComplianceEN ISO 11925, SIA V280, EN 1928, EN 1847.
