SikaSika® Drain-1000/20

Sika Dimpled drainage sheet (Drainage Board). Model Sika® Drain-1000/20. 20 mm deep dimples; Weight 1000 (±50) g/m2; Compression resistance 150 (±40) kN/m2; Tensile strength 9 (-2) kN/m. material: High density polyethylene (HDPE)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFSika-Drain-1000-20.pdfData sheet

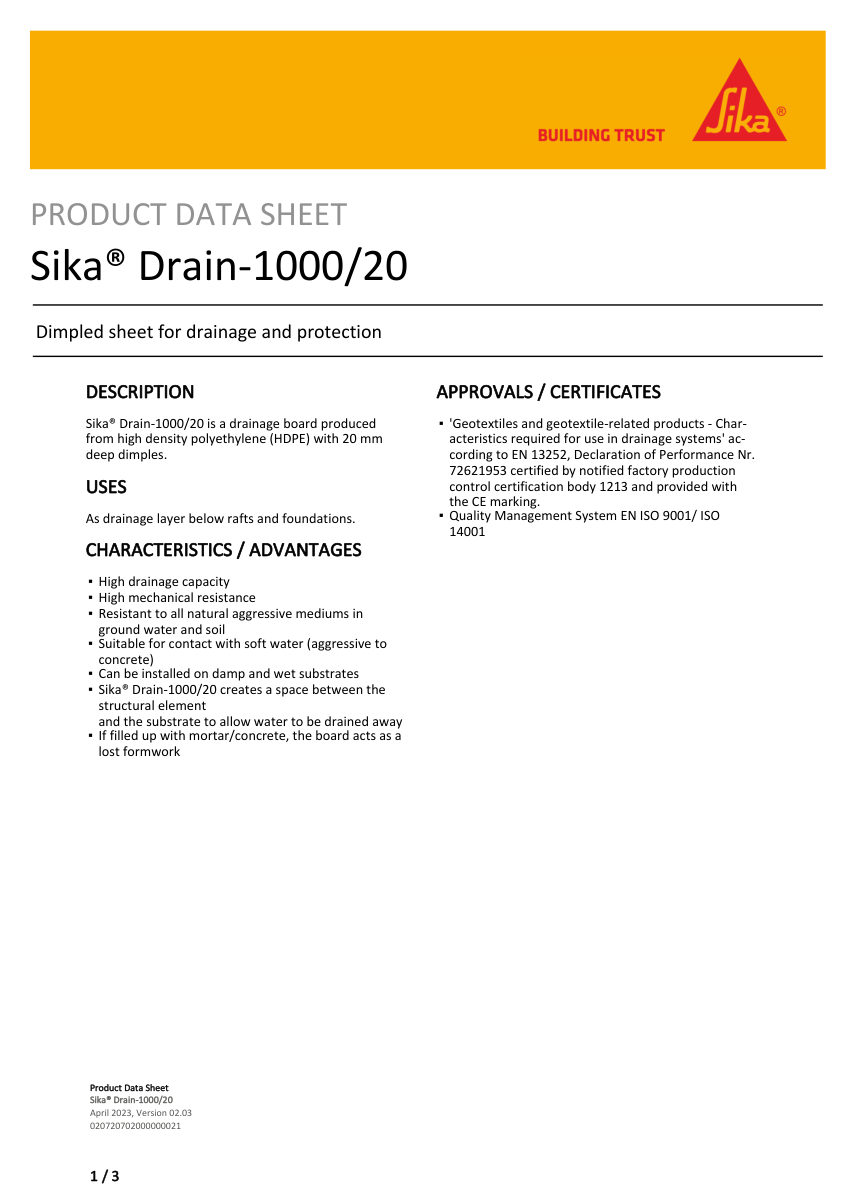

Sika Sika® Drain-1000/20 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Sika
Catalog no.
Sika® Drain-1000/20
Product type
Roofing/Waterproofing
MasterFormat
7
Cut sheet
PDF · manufacturer current

Product details

Catalog numberSika® Drain-1000/20
DescriptionSika Dimpled drainage sheet (Drainage Board). Model Sika® Drain-1000/20. 20 mm deep dimples; Weight 1000 (±50) g/m2; Compression resistance 150 (±40) kN/m2; Tensile strength 9 (-2) kN/m. material: High density polyethylene (HDPE)
Flow Rate10 l/(m·s) ± 20 % at 20 kPa
FinishBrown or black
MountingLoose laid and mechanically fastened
Dimensions20.0 (±2) mm thickness; 2.0m × 20m roll
ComplianceEN 13252, EN ISO 9001, ISO 14001.
