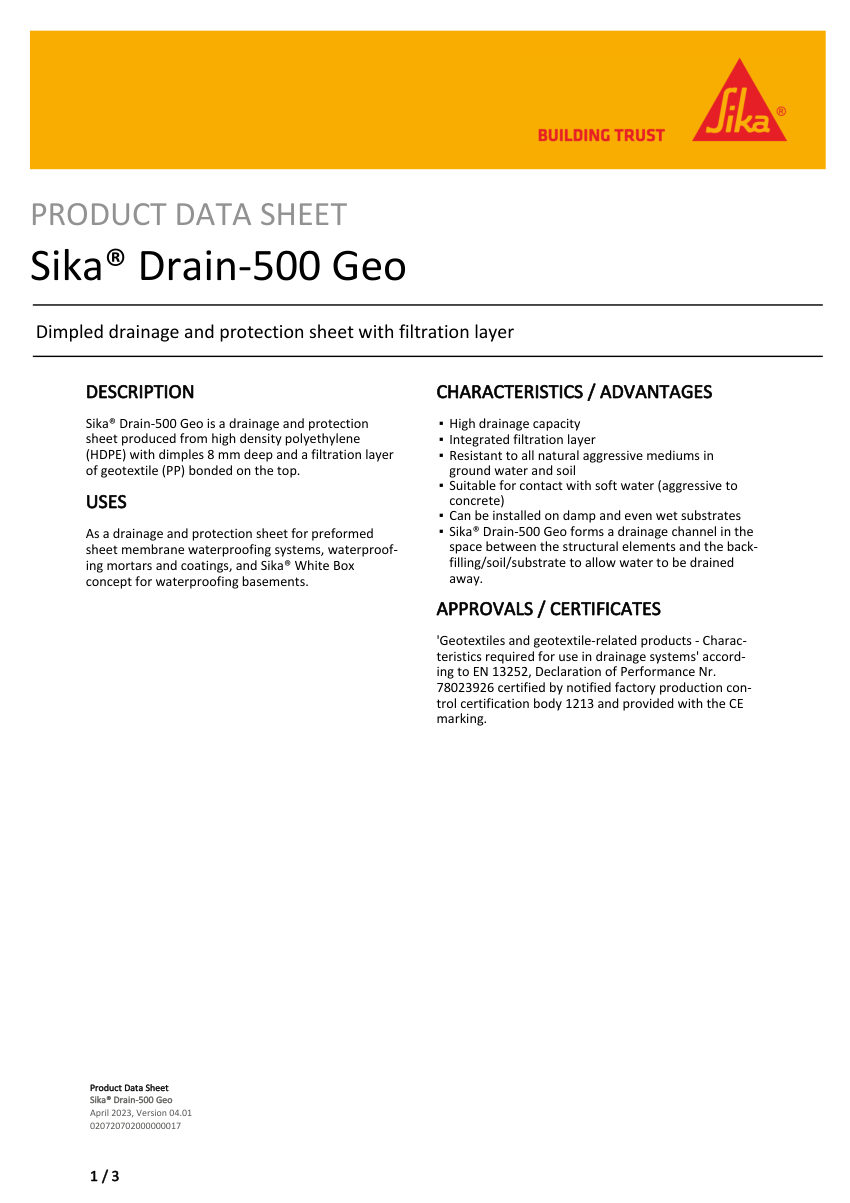

Sika Sika® Drain-500 Geo
submittal by Sika. Cut sheet, part numbers and a one-click submittal — indexed and ready in Submittal.app.
Sika Dimpled drainage and protection sheet with filtration layer (Drainage and Protection Sheet). Model Sika® Drain-500 Geo. Dimple depth 8 mm
Build a submittal around the Sika Sika® Drain-500 Geo in minutes — describe the job or paste your schedule and the agent pulls the current cut sheet into a formatted package you can share for review and get quoted, fast.
Product details
| Weight | 500 g/m² (sheet) + 100 g/m² (geotextile); Compression resistance 200 kPa; Tensile strength 10 kN/m. material: High density polyethylene (HDPE) with geotextile (PP) filtration layer |
|---|---|
| Flow Rate | Horizontal: 0.30 l/(m·s) at 20 kPa |
| Vertical | 1.9 l/(m·s) at 20 kPa |
| Finish | Brown or black HDPE with white geotextile top |
| Mounting | Installed on damp or wet substrates; max depth 5 m |
| Dimensions | Roll size 2.40 × 20.00 m; Thickness 8.0 (±0.8) mm; complia |
Part numbers / catalog
