DIV 7ROOFING/WATERPROOFINGCUT SHEET INDEXED

SikaSika® FloorJoint EX A

Sika Prefabricated Floor Joint Panel (Floor Joint Panel). Model Sika® FloorJoint EX A. Compressive strength ~110 N/mm²; Tensile strength ~50 N/mm²; Gap width range 5mm to 55mm; Allows horizontal movement +15mm to +65mm. material: Glass-carbon fiber reinforced polymer (CFRP) composite, PUR

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFSika-FloorJoint-EX-A.pdfData sheet

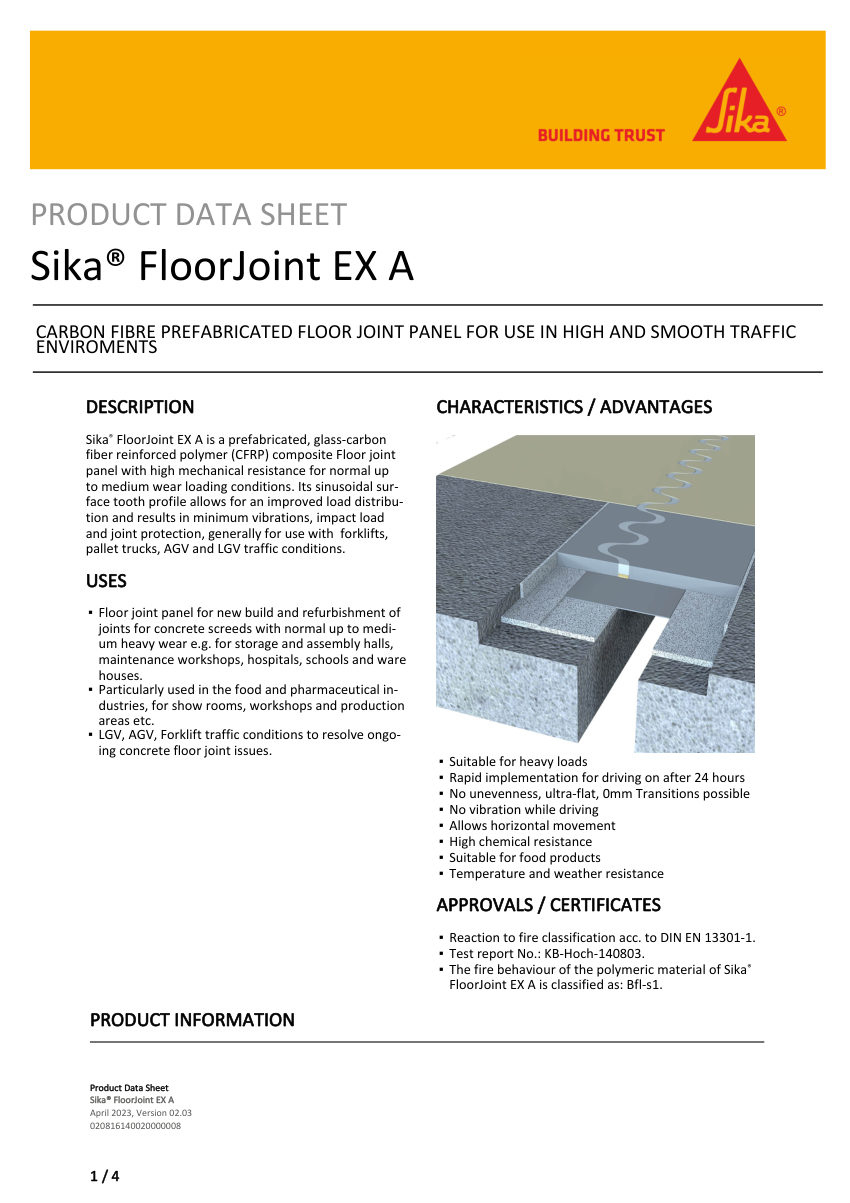

Sika Sika® FloorJoint EX A cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Sika
Catalog no.
Sika® FloorJoint EX A
Product type
Roofing/Waterproofing
MasterFormat
7
Cut sheet
PDF · manufacturer current

Product details

Catalog numberSika® FloorJoint EX A
DescriptionSika Prefabricated Floor Joint Panel (Floor Joint Panel). Model Sika® FloorJoint EX A. Compressive strength ~110 N/mm²; Tensile strength ~50 N/mm²; Gap width range 5mm to 55mm; Allows horizontal movement +15mm to +65mm. material: Glass-carbon fiber reinforced polymer (CFRP) composite, PUR
FinishGrey, approx. Ral7037
MountingAdhesive bed (SikaDur 31), 85 mm eccentric offset
Dimensions1200 mm x 255 mm x 15 mm
ComplianceDIN EN 13301-1, Bfl-s1.
