SikaSikaRoof® Anchor-W PVC

Sika Prefabricated universal roof connection point (Roofing Accessories). Model SikaRoof® Anchor-W PVC. Compatible with Sarnafil® PVC and Sikaplan® PVC membranes; Maximum roof slope 10°; Design load max 1600 N with 4 fasteners; Design load max 800 N with 2 fasteners. material: Injected, modified polyvinyl chloride (PVC) compound / Machined Stainless Steel Grade 316 / Galvanized carbon steel washer

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFSikaRoof-Anchor-W-PVC.pdfData sheet

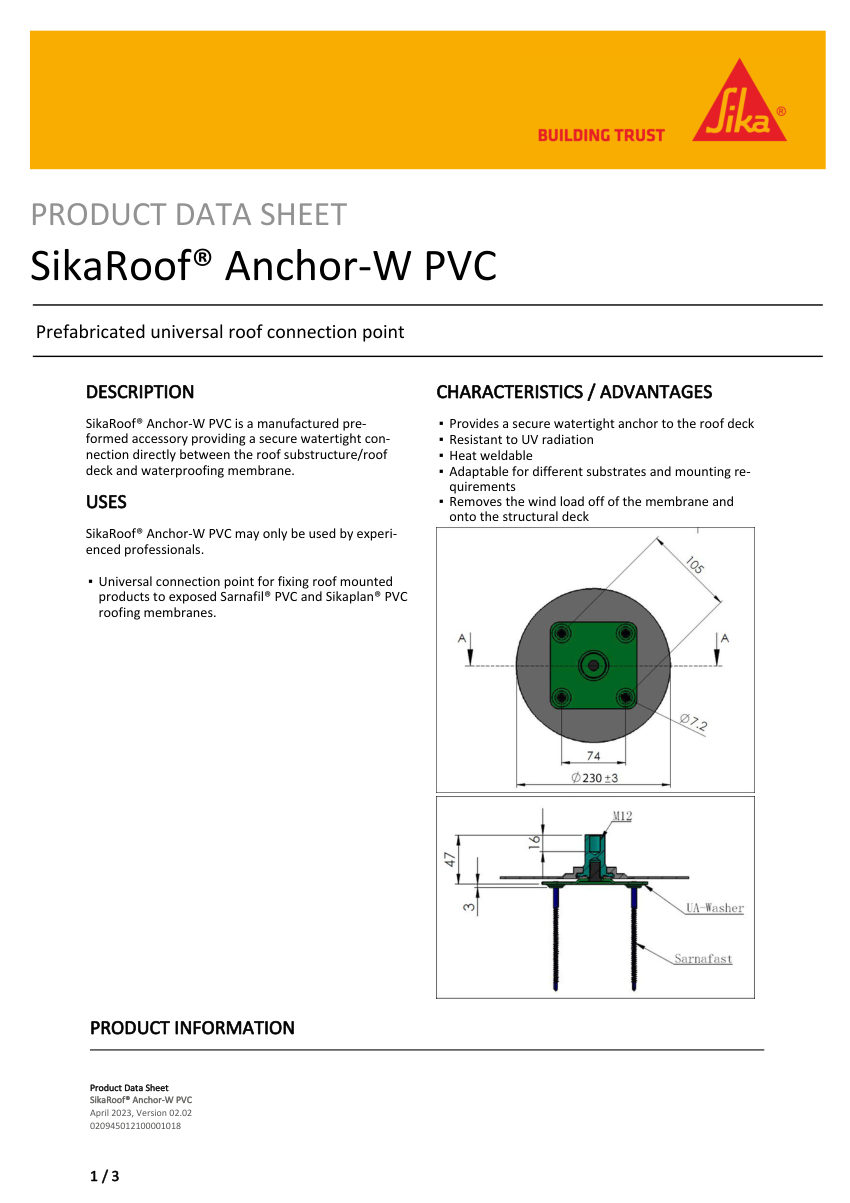

Sika SikaRoof® Anchor-W PVC cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Sika
Catalog no.
SikaRoof® Anchor-W PVC
Product type
Roofing/Waterproofing
MasterFormat
7
Cut sheet
PDF · manufacturer current

Product details

Catalog numberSikaRoof® Anchor-W PVC
DescriptionSika Prefabricated universal roof connection point (Roofing Accessories). Model SikaRoof® Anchor-W PVC. Compatible with Sarnafil® PVC and Sikaplan® PVC membranes; Maximum roof slope 10°; Design load max 1600 N with 4 fasteners; Design load max 800 N with 2 fasteners. material: Injected, modified polyvinyl chloride (PVC) compound / Machined Stainless Steel Grade 316 / Galvanized carbon steel washer
FinishWhite and light grey
MountingFastened to substrate (concrete, metal deck, plywood/OSB) and heat welded to membrane
DimensionsWidth 180 mm ø (+/- 3), Height 50 mm (+/- 1)
ComplianceR
