DIV 7ROOFING/WATERPROOFINGCUT SHEET INDEXED

SikaSikaRoof® TurfPave® XD

Sika Grass and gravel paver module (SikaRoof). Model TurfPave XD. Compressive strength (unfilled): 1,450 kN/m2; Compressive strength (sand filled): 29,400 kN/m2

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFSikaRoof-TurfPave-XD.pdfData sheet

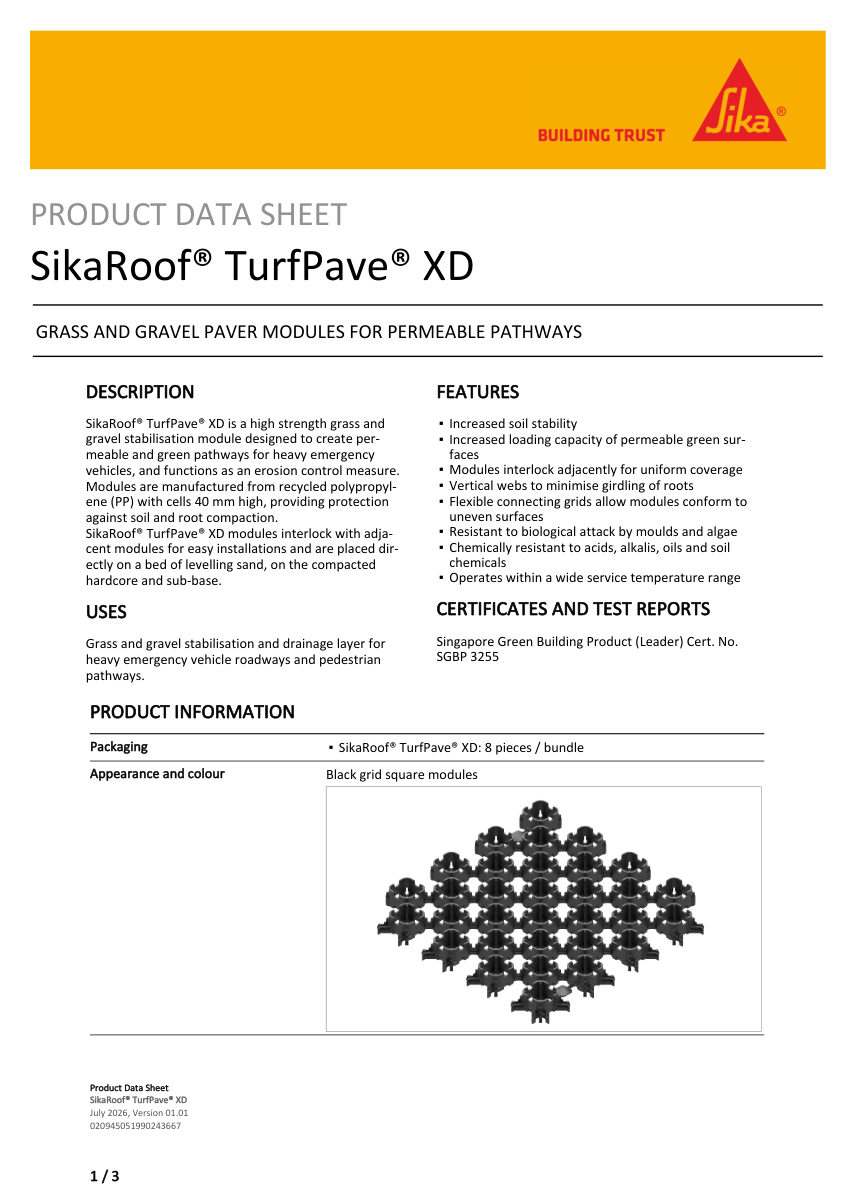

Sika SikaRoof® TurfPave® XD cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Sika
Catalog no.
SikaRoof® TurfPave® XD
Product type
Roofing/Waterproofing
MasterFormat
7
Cut sheet
PDF · manufacturer current

Product details

Catalog numberSikaRoof® TurfPave® XD
DescriptionSika Grass and gravel paver module (SikaRoof). Model TurfPave XD. Compressive strength (unfilled): 1,450 kN/m2; Compressive strength (sand filled): 29,400 kN/m2
Service temperature-30 °C to 80 °C
Weight4.3 kg/m2. material: Recycled polypropylene (PP)
End connectionInterlocking with adjacent modules via in-built clips
FinishBlack grid square
MountingLoosely laid on levelling sand, interlocked, no mechanical fixing
Dimensions500 x 500 x 40 mm
ComplianceSingapore Green Building Product (Leader) Cert. No. SGBP 3255.
