DIV 7ROOFING/WATERPROOFINGCUT SHEET INDEXED

SikaSikaRoof® VersiDrain® 8 Geotextile

Sika Dimpled Drainage Sheet (SikaRoof). Model VersiDrain 8 Geotextile. 8 mm deep dimples; Tensile strength 10 kN/m; Elongation 50%; Maximum installation depth 5 m. material: HDPE with PP geotextile

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFSikaRoof-VersiDrain-8-Geotextile.pdfData sheet

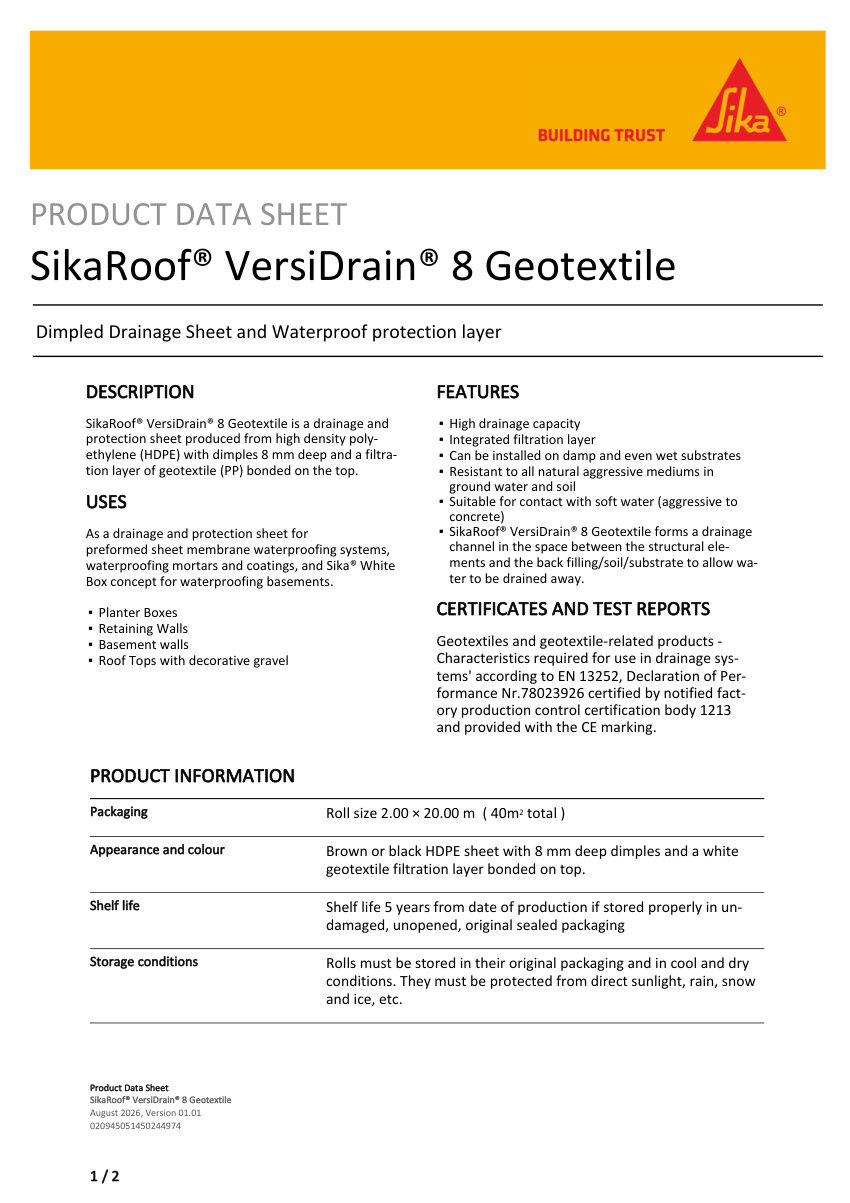

Sika SikaRoof® VersiDrain® 8 Geotextile cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Sika
Catalog no.
SikaRoof® VersiDrain® 8 Geotextile
Product type
Roofing/Waterproofing
MasterFormat
7
Cut sheet
PDF · manufacturer current

Product details

Catalog numberSikaRoof® VersiDrain® 8 Geotextile
DescriptionSika Dimpled Drainage Sheet (SikaRoof). Model VersiDrain 8 Geotextile. 8 mm deep dimples; Tensile strength 10 kN/m; Elongation 50%; Maximum installation depth 5 m. material: HDPE with PP geotextile
Flow Rate0.30 l/(m·s) horizontal, 1.9 l/(m·s) vertical
FinishBrown or black HDPE with white geotextile
MountingLoose laid and mechanically fastened
Dimensions2.00 x 20.00 m roll, 8.0 mm thickness
ComplianceEN 13252.
  • Official cut sheet, indexed
  • Auto-matched to your schedule
  • Cover + TOC, one click
