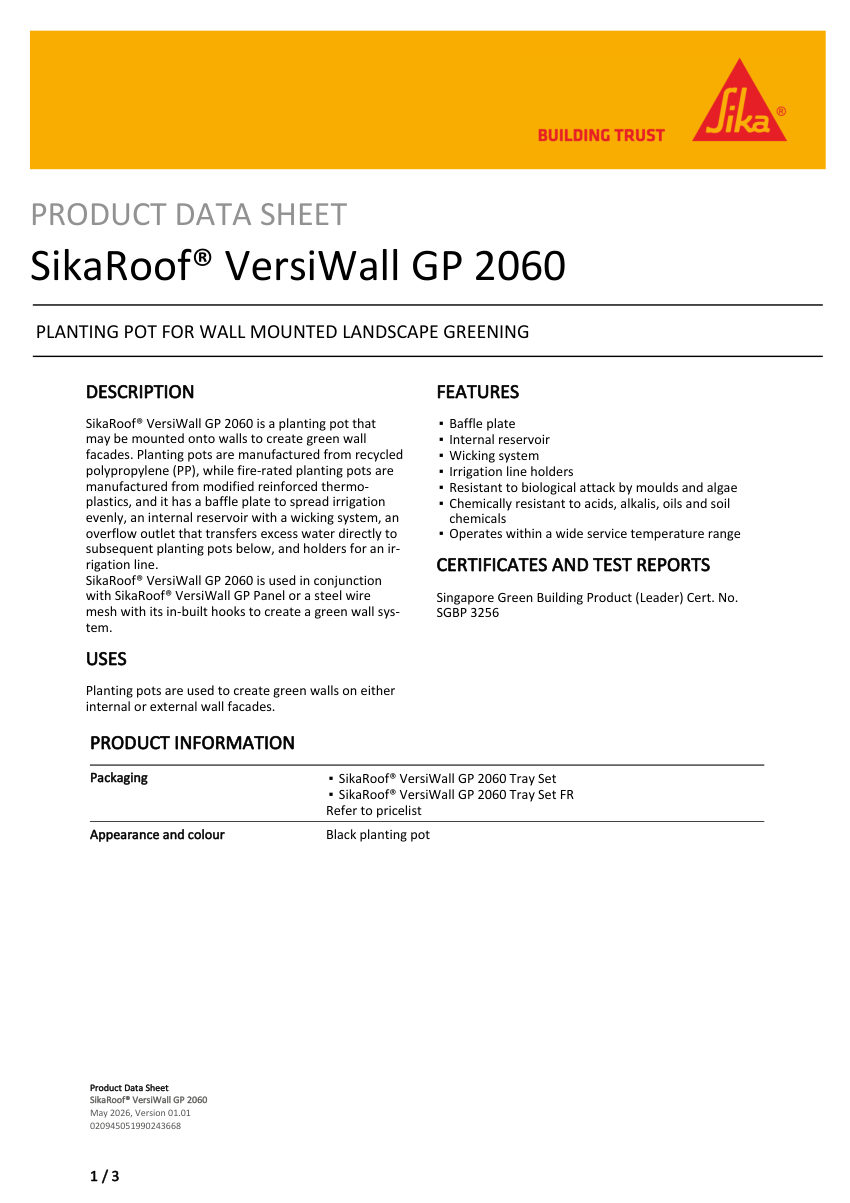

DIV 7ROOFING/WATERPROOFINGCUT SHEET INDEXED
SikaSikaRoof® VersiWall GP 2060
Sika Wall-mounted planting pot (Green Wall System). Model SikaRoof® VersiWall GP 2060. Planting media volume: 1.8 L
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Sika
- Catalog no.
- SikaRoof® VersiWall GP 2060
- Product type
- Roofing/Waterproofing
- MasterFormat
- 7
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | SikaRoof® VersiWall GP 2060 |
|---|---|
| Description | Sika Wall-mounted planting pot (Green Wall System). Model SikaRoof® VersiWall GP 2060. Planting media volume: 1.8 L |
| Service temperature | -30 °C to 80 °C (Non-FR) or -30 °C to 115 °C (FR) |
| Weight | 93 kg/m² (Closed) or 62 kg/m² (Spaced) |
| Features | Baffle plate, internal reservoir, wicking system, irrigation line holders. material: Recycled polypropylene (PP) or modified reinforced thermo-plastics (FR) |
| Finish | Black |
| Mounting | Wall mounted |
| Dimensions | 200 x 150 x 195 mm |
| Compliance | SGBP 3256, BS EN 13501-1 (Class Bfl, s1), BS EN 45545-2 (CIT < 0.75). |
