SikaSikaShield® E40 HDPE SA 1,5 mm
Sika Self-adhesive bituminous membrane (Waterproofing Membrane). Model SikaShield® E40 HDPE SA 1,5 mm. Thickness: 1.50 ± 0.20 mm
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Sika
- Catalog no.
- SikaShield® E40 HDPE SA 1,5 mm
- Product type
- Roofing/Waterproofing
- MasterFormat
- 7
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | SikaShield® E40 HDPE SA 1,5 mm |
|---|---|
| Description | Sika Self-adhesive bituminous membrane (Waterproofing Membrane). Model SikaShield® E40 HDPE SA 1,5 mm. Thickness: 1.50 ± 0.20 mm |
| Weight | 1.60 ± 0.16 kg/m2 |
| Service temperature | -10°C to 90°C |
| Elongation at break | 300%. material: Modified bitumen with biaxially oriented and cross laminated HDPE top surface |
| Finish | HDPE Film |
| Mounting | Self-adhesive |
| Dimensions | 1.0 m width x 20.0 m length, 1.50 ± 0.20 mm thickness |
| Compliance | ASTM G14, ASTM E154, ASTM D1000, ASTM D1004, ASTM D1204, ASTM E96, MOAT 27:5.1.4. |

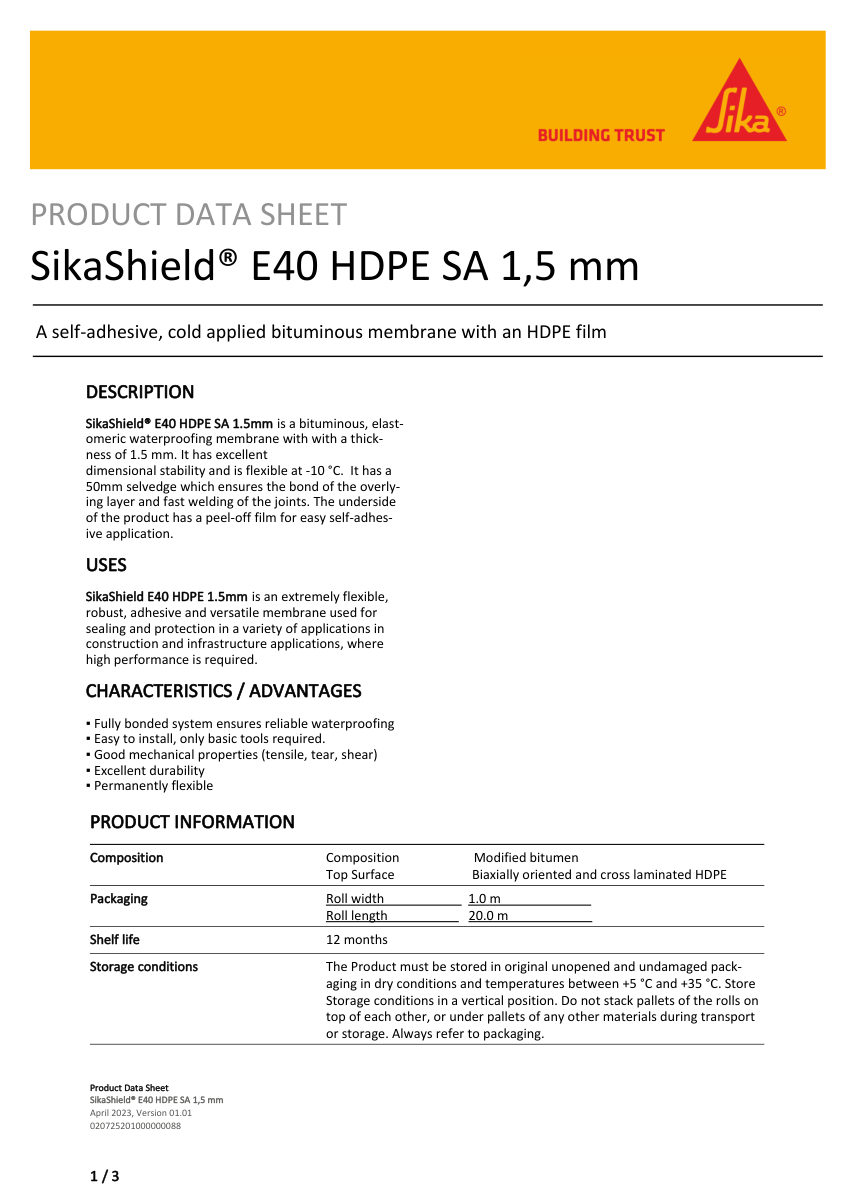

- Official cut sheet, indexed
