Silent KnightSD505-DTS Remote Test SwitchSD505-DTS
Silent Knight Duct Smoke Detector Housing with Relay Module and Remote Test Switch (Fire Detection). Model SD505-ADHR / SD505-DTS. Alarm Relay: 10 A @ 24 VDC / 120-240 VAC
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Silent Knight
- Catalog no.
- SD505-DTS
- Product type
- Fire Alarm Control Units
- MasterFormat
- 28 31 11

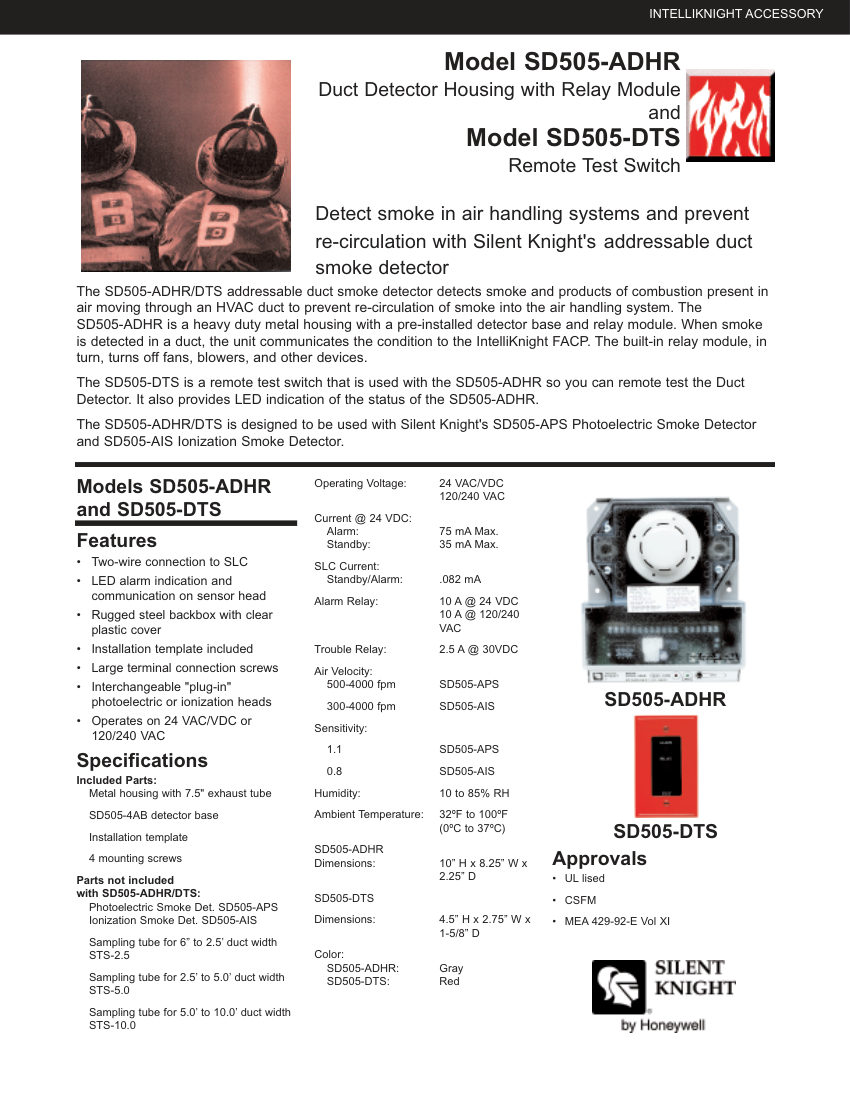

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | SD505-DTS |
|---|---|
| Description | Silent Knight Duct Smoke Detector Housing with Relay Module and Remote Test Switch (Fire Detection). Model SD505-ADHR / SD505-DTS. Alarm Relay: 10 A @ 24 VDC / 120-240 VAC |
| Trouble Relay | 2.5 A @ 30 VDC; Current @ 24 VDC: 75 mA Max (Alarm), 35 mA Max (Standby) |
| Ambient Temperature | 32ºF to 100ºF (0ºC to 37ºC). material: Steel backbox, clear plastic cover |
| End connection | Two-wire connection to SLC |
| Flow Rate | 500-4000 fpm (Photoelectric), 300-4000 fpm (Ionization) |
| Finish | Gray (ADHR), Red (DTS) |
| Mounting | Included template, 4 mounting screws |
| Dimensions | ADHR: 10" H x 8.25" W x 2.25" D |
| DTS | 4. |
