TraneCOMPONENT LAYOUT; 90-150T VFD & RETURN BOX12134685_B

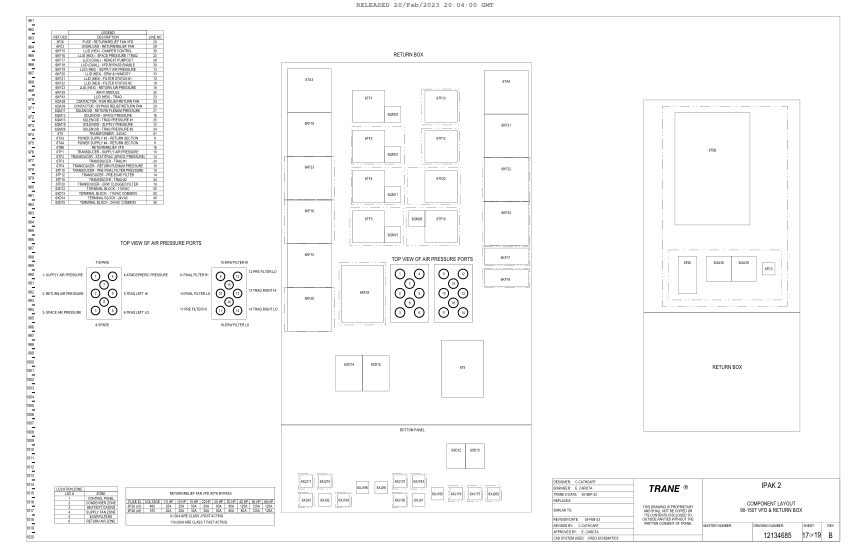

Trane Component Layout Diagram (HVAC Control). Model 90-150T VFD & RETURN BOX. Includes Return/Relief Fan VFD (6TB6); Features multiple pressure transducers for supply, return, and space pressure; Contains solenoids for return plenum, space, and TRAQ pressure control; Utilizes 24VAC power supplies (6TA3, 6TA4) for return section. voltage: 24VAC, 115VAC.
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Trane
- Catalog no.
- 12134685_B
- Product type
- HVAC
- MasterFormat
- 23
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | 12134685_B |
|---|---|
| Description | Trane Component Layout Diagram (HVAC Control). Model 90-150T VFD & RETURN BOX. Includes Return/Relief Fan VFD (6TB6); Features multiple pressure transducers for supply, return, and space pressure; Contains solenoids for return plenum, space, and TRAQ pressure control; Utilizes 24VAC power supplies (6TA3, 6TA4) for return section. voltage: 24VAC, 115VAC. |
