TraneIPAK 2 CONTROLS SCHEMATIC 90-150T AIR HANDLER CONTROLS #112134936-B

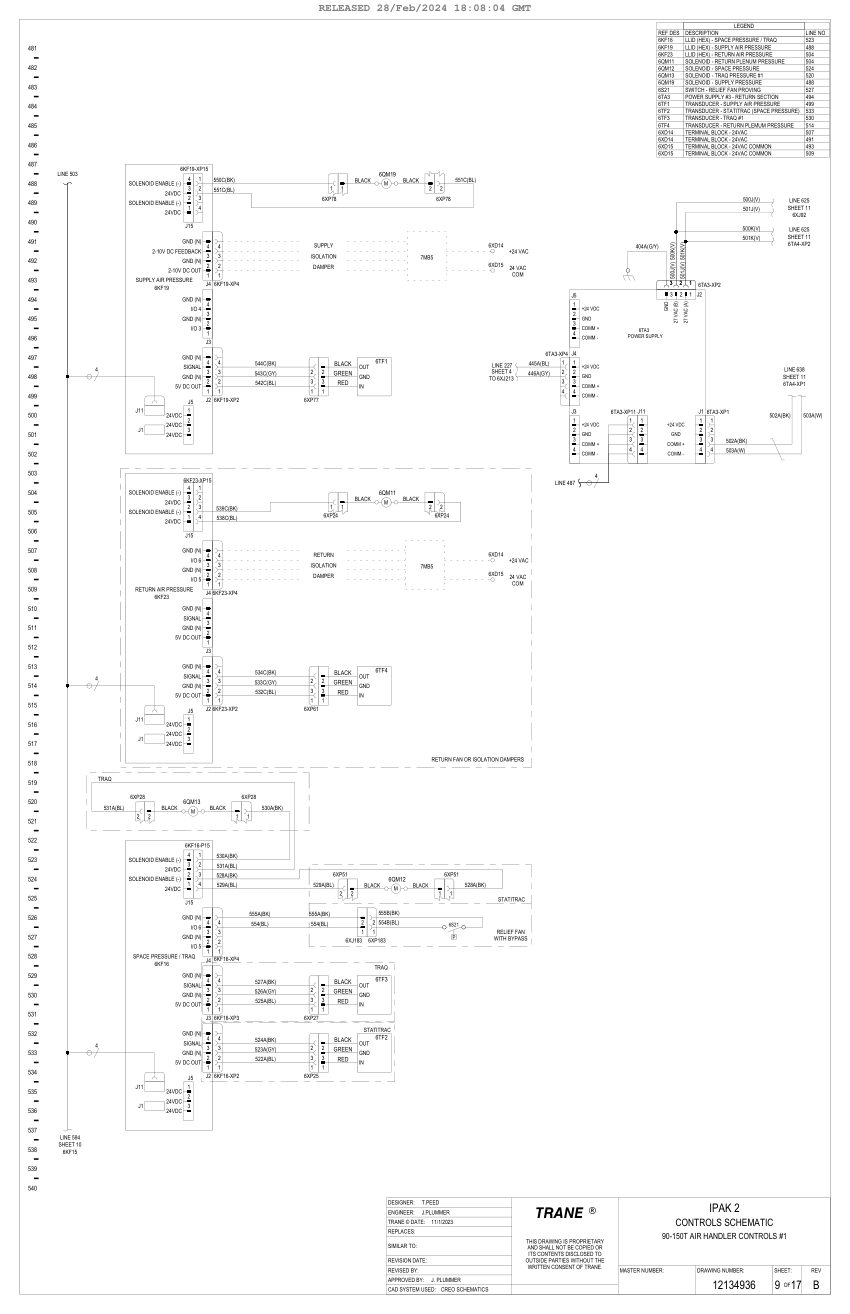

Trane Air Handler Controls Schematic (HVAC Controls). Model Trane IPAK 2 90-150T. Controls schematic for Trane IPAK 2 90-150T air handler; Includes solenoid valves for return plenum, space, TRAQ, and supply pressure; Features pressure transducers for supply air, Statitrac space pressure, TRAQ, and return plenum; Utilizes 24VAC power supply and terminal blocks. voltage: 24VAC.

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF12134936-B.pdfData sheet
Trane 12134936-B cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Trane
Catalog no.
12134936-B
Product type
HVAC
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog number12134936-B
DescriptionTrane Air Handler Controls Schematic (HVAC Controls). Model Trane IPAK 2 90-150T. Controls schematic for Trane IPAK 2 90-150T air handler; Includes solenoid valves for return plenum, space, TRAQ, and supply pressure; Features pressure transducers for supply air, Statitrac space pressure, TRAQ, and return plenum; Utilizes 24VAC power supply and terminal blocks. voltage: 24VAC.
