TranePOWER SCHEMATIC, 20T-30T - REFRIGERATION WITH COMPRESSOR VFD12135002B

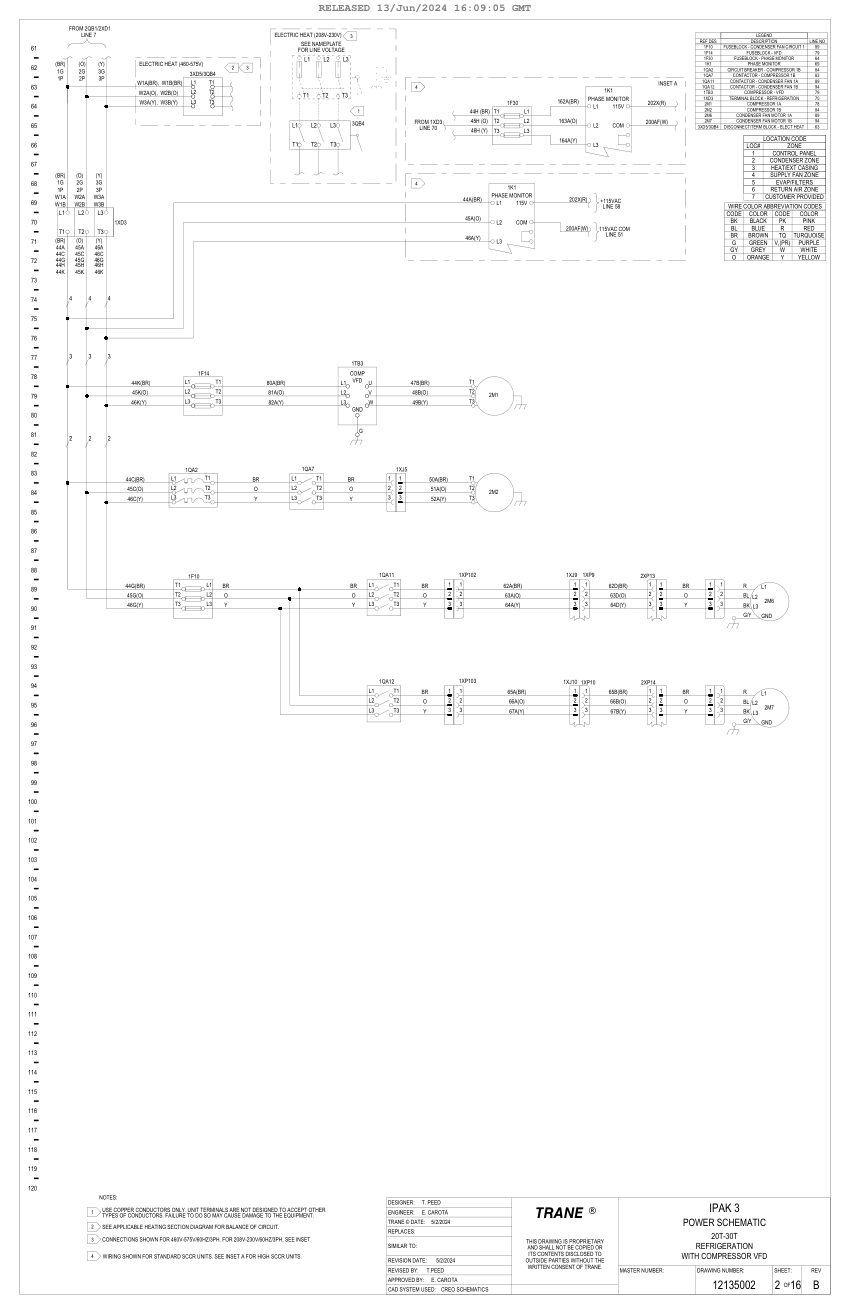

Trane Power Schematic (HVAC). Model 20T-30T. Applies to 20T-30T refrigeration units with compressor VFD; Includes electric heat circuits for 208V-230V and 460-575V; Features phase monitor and fuseblocks for condenser fan and VFD circuits; Documents compressor 1A/1B and condenser fan motor 1A/1B connections. voltage: 208V-230V, 460-575V.
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Trane
- Catalog no.
- 12135002B
- Product type
- HVAC
- MasterFormat
- 23
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | 12135002B |
|---|---|
| Description | Trane Power Schematic (HVAC). Model 20T-30T. Applies to 20T-30T refrigeration units with compressor VFD; Includes electric heat circuits for 208V-230V and 460-575V; Features phase monitor and fuseblocks for condenser fan and VFD circuits; Documents compressor 1A/1B and condenser fan motor 1A/1B connections. voltage: 208V-230V, 460-575V. |
