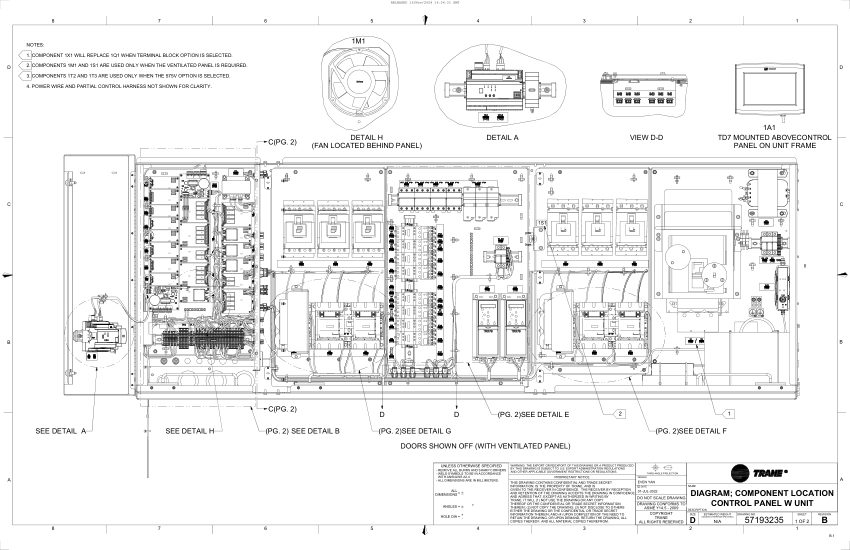

TraneComponent Location Control Panel, W Units5719-3235B
Trane Component Location Control Panel (HVAC Control). Replaces component 1Q1 when terminal block option is selected; Components 1M1 and 1S1 used only for ventilated panel; Components 1T2 and 1T3 used only for 575V option; Fan located behind panel. mounting: Mounted above control panel on unit frame
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Trane
- Catalog no.
- 5719-3235B
- Product type
- HVAC
- MasterFormat
- 23
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | 5719-3235B |
|---|---|
| Description | Trane Component Location Control Panel (HVAC Control). Replaces component 1Q1 when terminal block option is selected; Components 1M1 and 1S1 used only for ventilated panel; Components 1T2 and 1T3 used only for 575V option; Fan located behind panel. mounting: Mounted above control panel on unit frame |
| Compliance | ANSI/AWS A2.4 |
| Voltage | 575V (optional). |
