DIV 23 · HVACHVACCUT SHEET INDEXED

Trane5720-6469J

Trane Control Panel (Air-cooled Chiller). Model CGAM. Includes LCI Module (1A15) and BACnet Module (1A41) based on configuration; DynaView mounted on controls door; Ventilated panel option available with components 1M1 and 1S1; Terminal block option replaces component 1Q1 with 1X1. mounting: V Frame

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF5720-6469J.pdfData sheet

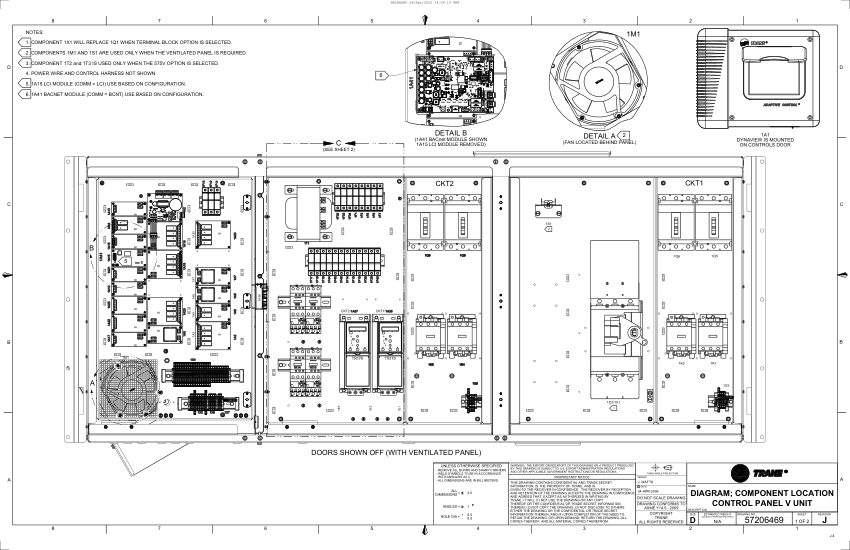

Trane 5720-6469J cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Trane
Catalog no.
5720-6469J
Product type
HVAC
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog number5720-6469J
DescriptionTrane Control Panel (Air-cooled Chiller). Model CGAM. Includes LCI Module (1A15) and BACnet Module (1A41) based on configuration; DynaView mounted on controls door; Ventilated panel option available with components 1M1 and 1S1; Terminal block option replaces component 1Q1 with 1X1. mounting: V Frame
Voltage575V (Optional).
