TraneRTAF Field Layout Diagram Middle East 500T5722-9581A

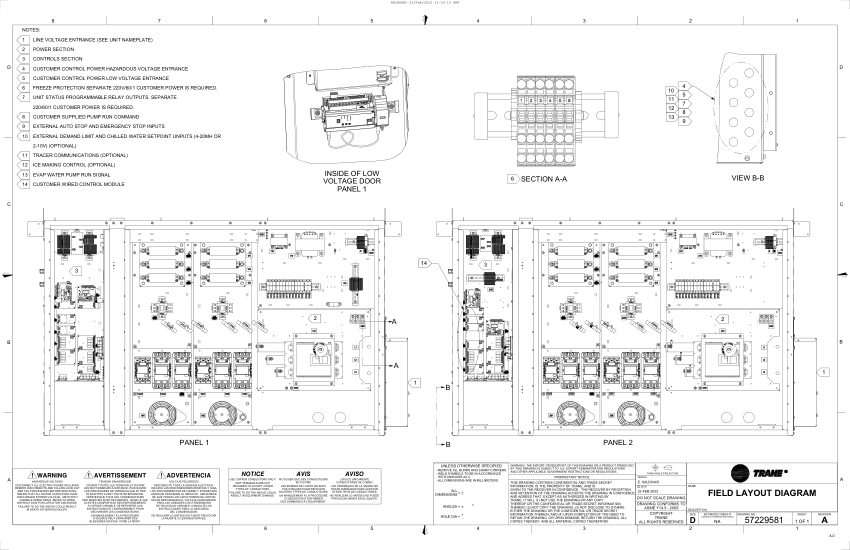

Trane Chiller. Model RTAF 500T. Requires separate 220V/60/1 customer power for freeze protection; Requires separate 220V/60/1 customer power for unit status programmable relay outputs; Includes external auto stop and emergency stop inputs; Optional external demand limit and chilled water setpoint inputs (4-20mA or 2-10V). voltage: 220V/60/1.
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Trane
- Catalog no.
- 5722-9581A
- Product type
- HVAC
- MasterFormat
- 23
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | 5722-9581A |
|---|---|
| Description | Trane Chiller. Model RTAF 500T. Requires separate 220V/60/1 customer power for freeze protection; Requires separate 220V/60/1 customer power for unit status programmable relay outputs; Includes external auto stop and emergency stop inputs; Optional external demand limit and chilled water setpoint inputs (4-20mA or 2-10V). voltage: 220V/60/1. |
