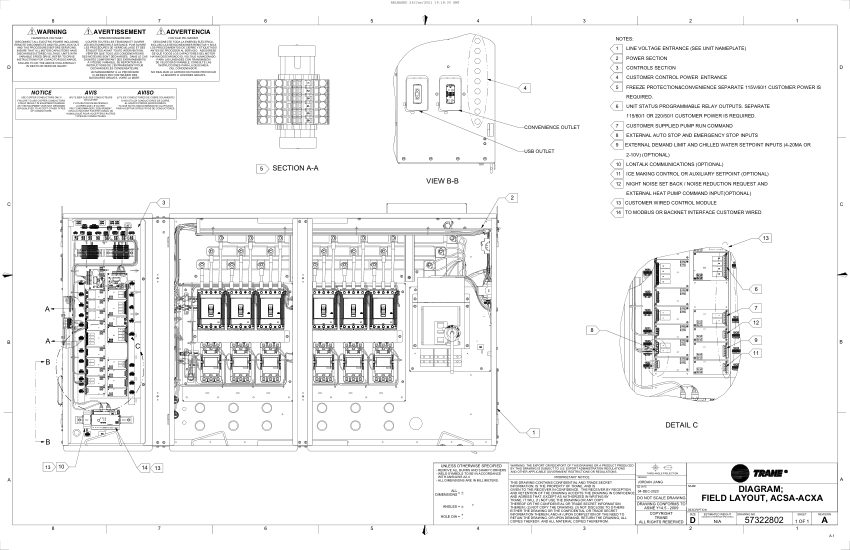

TraneField Layout Diagram ACSA - ACXA / Wiring Diagram5732-2802A
Trane Wiring Diagram (HVAC). Model ACSA / ACXA. Requires copper conductors only; Separate 115V/60/1 customer power required for freeze protection; Separate 115V/60/1 or 220V/50/1 customer power required for programmable relay outputs; Includes line voltage entrance and power section. material: Copper conductors
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Trane
- Catalog no.
- 5732-2802A
- Product type
- HVAC
- MasterFormat
- 23
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | 5732-2802A |
|---|---|
| Description | Trane Wiring Diagram (HVAC). Model ACSA / ACXA. Requires copper conductors only; Separate 115V/60/1 customer power required for freeze protection; Separate 115V/60/1 or 220V/50/1 customer power required for programmable relay outputs; Includes line voltage entrance and power section. material: Copper conductors |
| Voltage | 115V/60/1, 220V/50/1. |
