TraneTracer™ XM30 Expansion Module Ordering Number: X13651537010BAS-PRC035D-EN

Trane Expansion Module (Tracer XM30). Model X13651537010. 4 configurable points (analog/binary inputs/outputs); Supports Thermistor, RTD, Current, Voltage, and Binary inputs; Maximum of 8 modules per Tracer UC400

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFBAS-PRC035D-EN.pdfData sheet

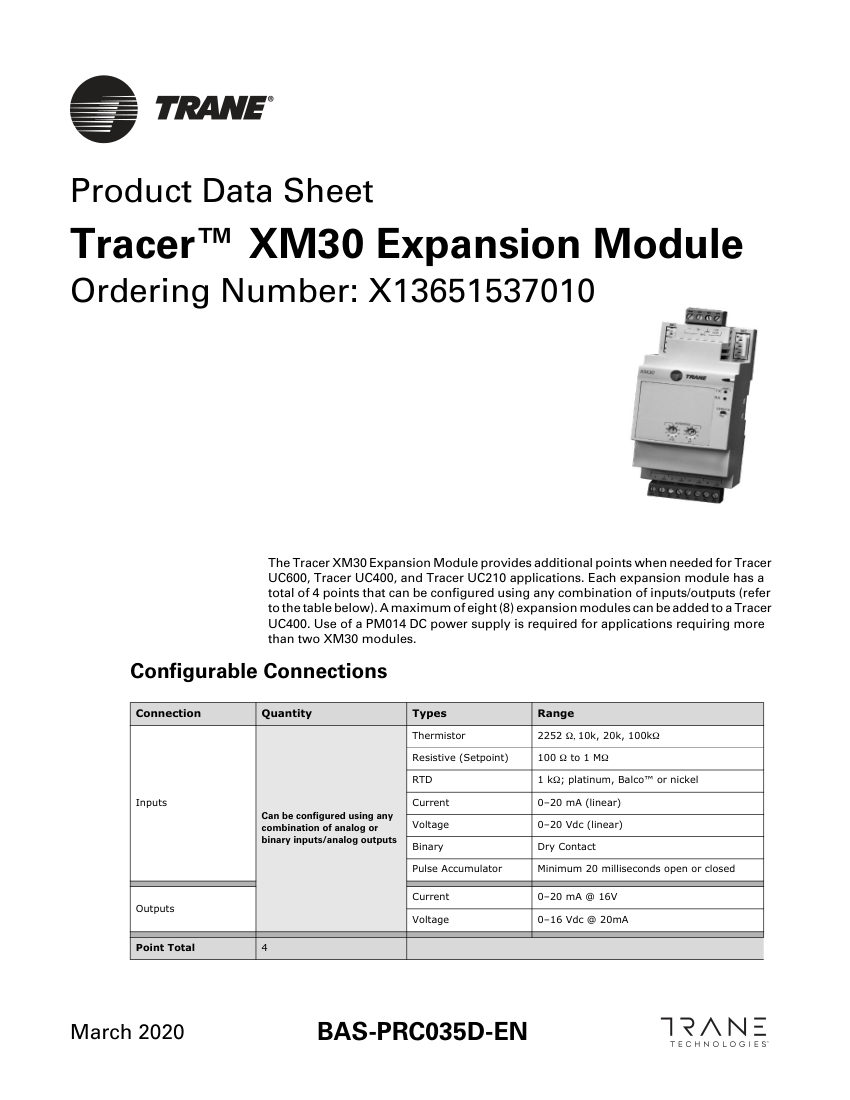

Trane BAS-PRC035D-EN cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Trane
Catalog no.
BAS-PRC035D-EN
Product type
HVAC
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberBAS-PRC035D-EN
DescriptionTrane Expansion Module (Tracer XM30). Model X13651537010. 4 configurable points (analog/binary inputs/outputs); Supports Thermistor, RTD, Current, Voltage, and Binary inputs; Maximum of 8 modules per Tracer UC400
Operating temperature-40°F to 158°F (-40°C to 70°C). mounting: NEMA 1
Dimensions4.00 in. x 2.17 in. x 2.11 in. (101.6 mm x 55 mm x 53.5 mm)
ComplianceUL916, UL94-5V, UL864, CE, FCC Part 15
Voltage24 Vdc ±10%.
