TraneTracer™ UC600 Programmable ControllerBAS-PRD016D-EN

Trane Programmable Controller (Tracer). Model UC600. Ordering Number: BMUC600AAA0100011; Supports BACnet MS/TP and BACnet IP protocols; 19 built-in I/O hardware terminations, expandable to 120

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFBAS-PRD016D-EN.pdfData sheet

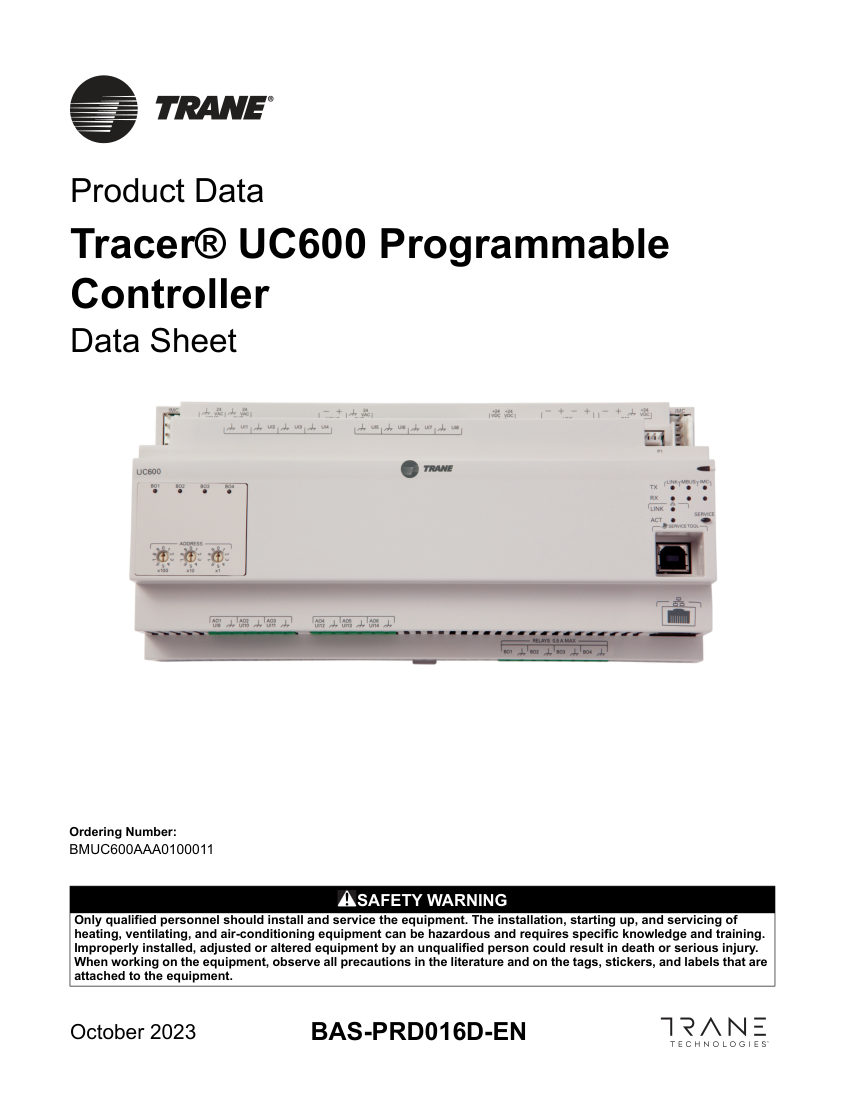

Trane BAS-PRD016D-EN cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Trane
Catalog no.
BAS-PRD016D-EN
Product type
HVAC
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberBAS-PRD016D-EN
DescriptionTrane Programmable Controller (Tracer). Model UC600. Ordering Number: BMUC600AAA0100011; Supports BACnet MS/TP and BACnet IP protocols; 19 built-in I/O hardware terminations, expandable to 120
Power input20.4–27.6 Vac, 50/60 Hz, 26 VA. mounting: DIN rail
ComplianceUL916, UL94-5V, UL864, CE, FCC Part 15, BTL Listed
Voltage24 Vac.
