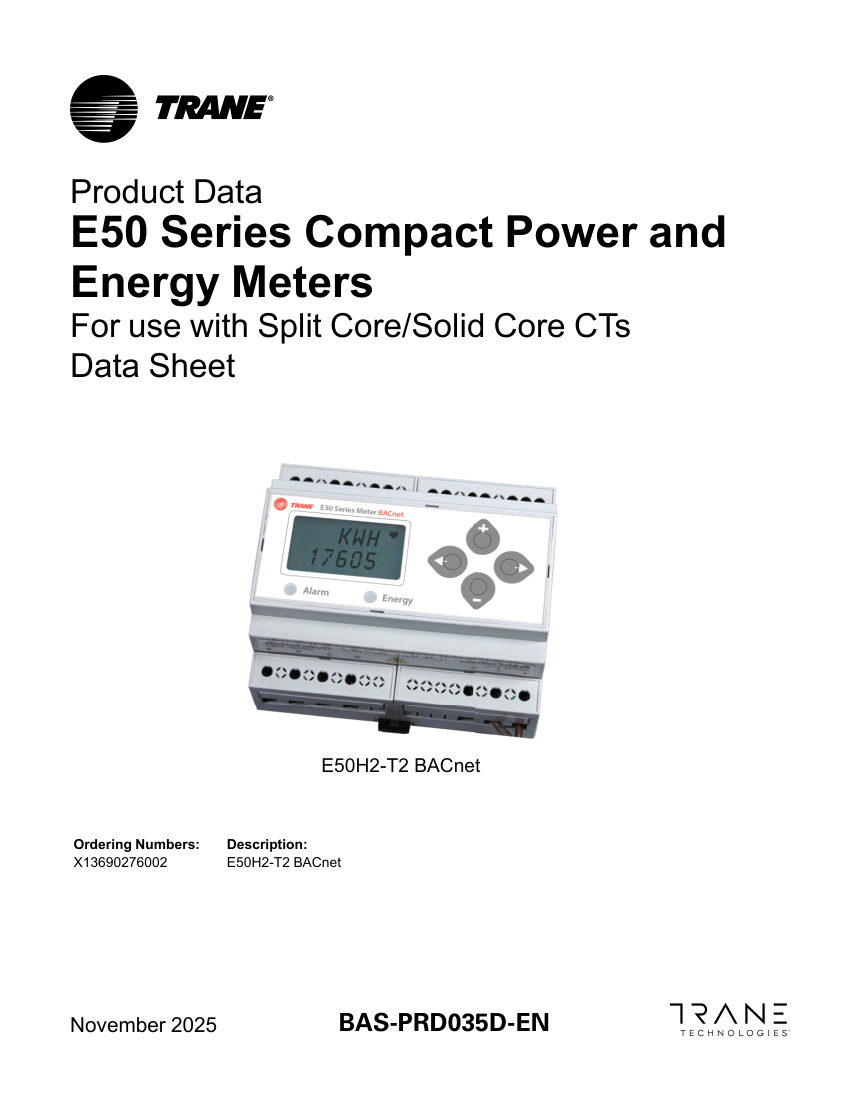

TraneBAS-PRD035D-EN
Trane Compact Power and Energy Meter (E50 Series). Model E50H2-T2 BACnet. Revenue grade accuracy of 0.2%; Compatible with CTs ranging from 5 A to 32,000 A; Native BACnet MS/TP support up to 115.2 kbps; Wide input range of 90-600 Vac. mounting: DIN Rail or 3-point screw mount
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Trane
- Catalog no.
- BAS-PRD035D-EN
- Product type
- HVAC
- MasterFormat
- 23
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | BAS-PRD035D-EN |
|---|---|
| Description | Trane Compact Power and Energy Meter (E50 Series). Model E50H2-T2 BACnet. Revenue grade accuracy of 0.2%; Compatible with CTs ranging from 5 A to 32,000 A; Native BACnet MS/TP support up to 115.2 kbps; Wide input range of 90-600 Vac. mounting: DIN Rail or 3-point screw mount |
| Compliance | ANSI C12.20, IEC 62053-22 Class 0.5S, BTL-certified |
| Voltage | 90-600 Vac. |
- Official cut sheet, indexed
