TraneSymbio™ 800 ControllerBAS-PRD041D-EN

Trane Equipment Controller (HVAC Controller). Model Symbio 800. Controls chillers, air-handlers, and large packaged HVAC equipment; Supports up to 500 combined I/O terminations with expansion modules; Features touch sensitive color screen user interface; Includes automated controller backup via Micro SD card. mounting: Factory-installed or field-install

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFBAS-PRD041D-EN.pdfData sheet

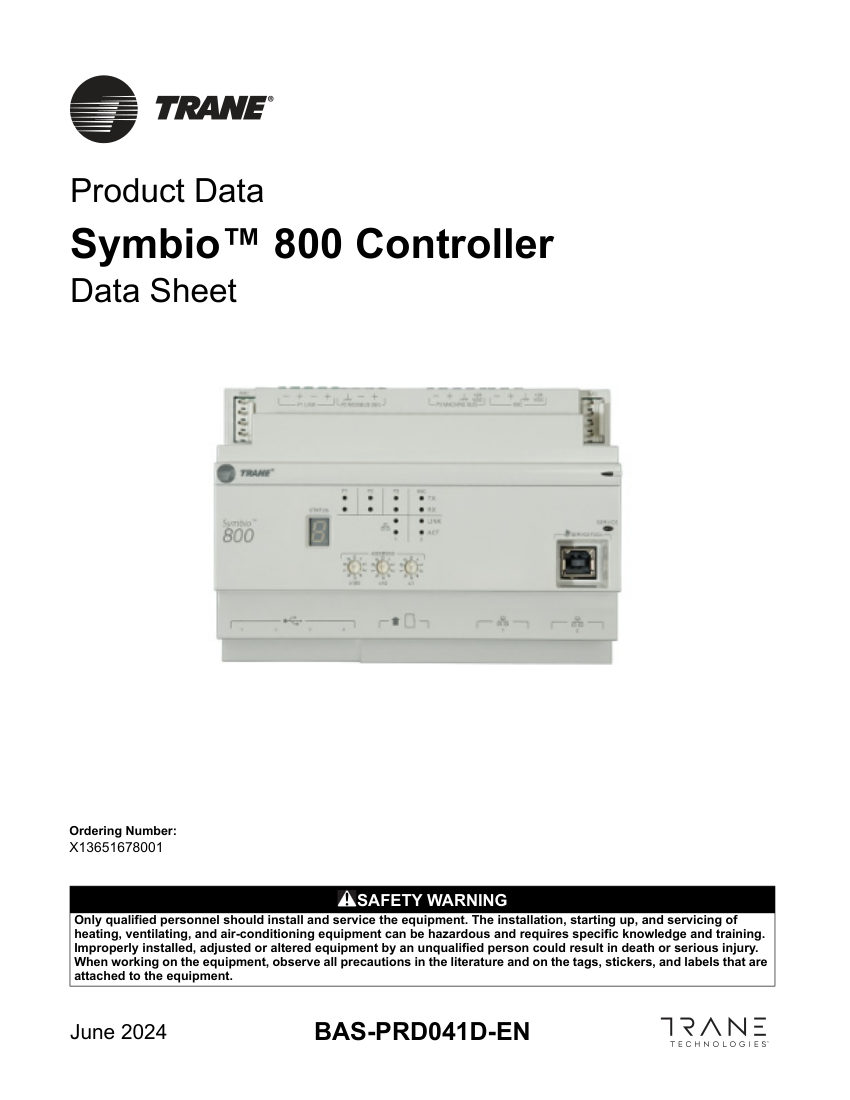

Trane BAS-PRD041D-EN cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Trane
Catalog no.
BAS-PRD041D-EN
Product type
HVAC
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberBAS-PRD041D-EN
DescriptionTrane Equipment Controller (HVAC Controller). Model Symbio 800. Controls chillers, air-handlers, and large packaged HVAC equipment; Supports up to 500 combined I/O terminations with expansion modules; Features touch sensitive color screen user interface; Includes automated controller backup via Micro SD card. mounting: Factory-installed or field-install
ComplianceBACnet, Modbus, LON.
