TraneTracer® TU Service Tool Pro-Chiller View Plus GraphicsBAS-PRD052C-EN

Trane Chiller Service and Configuration Software (Tracer TU Service Tool). Model X45091760001. Supports Trane BACnet controls and interfaces; Configures chillers with AdaptiView (UC800 and Symbio 800) controls; Creates and downloads graphics to UC600, Tracer SC, and Tracer Ensemble; Generates XML-based ASHRAE Chiller and Event Log reports. endConnection: USB Type A/B

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFBAS-PRD052C-EN.pdfData sheet

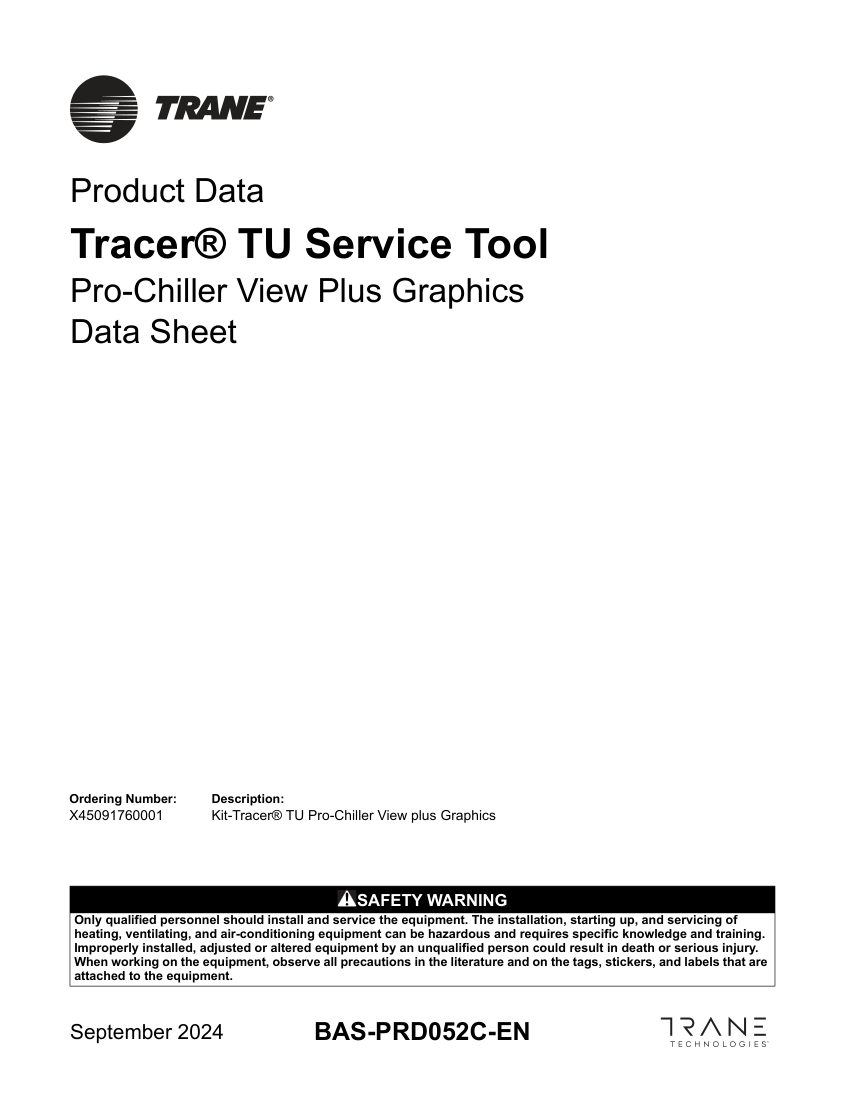

Trane BAS-PRD052C-EN cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Trane
Catalog no.
BAS-PRD052C-EN
Product type
HVAC
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberBAS-PRD052C-EN
DescriptionTrane Chiller Service and Configuration Software (Tracer TU Service Tool). Model X45091760001. Supports Trane BACnet controls and interfaces; Configures chillers with AdaptiView (UC800 and Symbio 800) controls; Creates and downloads graphics to UC600, Tracer SC, and Tracer Ensemble; Generates XML-based ASHRAE Chiller and Event Log reports. endConnection: USB Type A/B
ComplianceBACnet.
