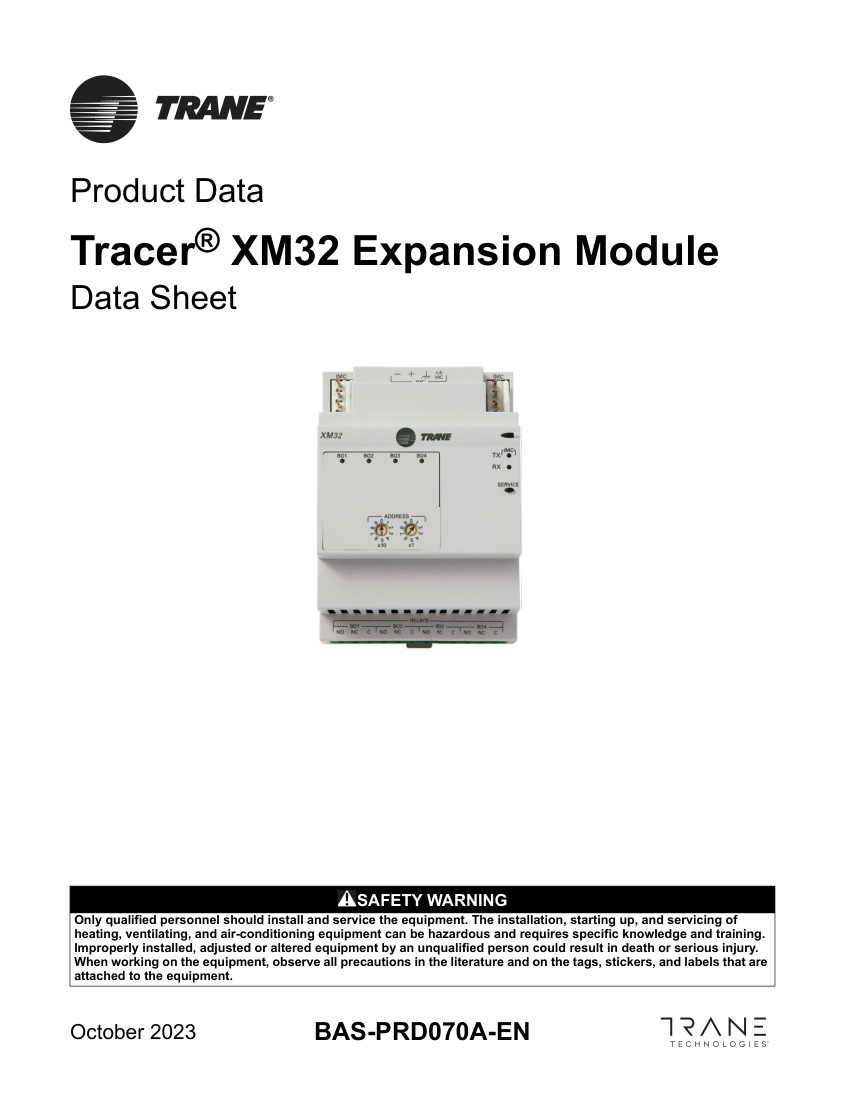

TraneTracer® XM32 Expansion ModuleBAS-PRD070A-EN
Trane Expansion Module (Tracer). Model XM32. 4 relay outputs (BO1 to BO4); Compatible with Tracer UC600, UC400, and UC210
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Trane
- Catalog no.
- BAS-PRD070A-EN
- Product type
- HVAC
- MasterFormat
- 23
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | BAS-PRD070A-EN |
|---|---|
| Description | Trane Expansion Module (Tracer). Model XM32. 4 relay outputs (BO1 to BO4); Compatible with Tracer UC600, UC400, and UC210 |
| Operating temperature | -40°F to 158°F (-40°C to 70°C) |
| Power consumption | 100 mA. mounting: NEMA 1 |
| Dimensions | 4.00 in. x 2.82 in. x 1.93 in. (101.6 mm x 71.63 mm x 49.02 mm) |
| Compliance | UL916, UL94-5V, UL864/UUKL, CE, FCC Part 15 |
| Voltage | 24 Vdc. |
