Trane Stand-alone Operator Display (Building Automation). Model 4950 0468. Includes Operator Display Cable and Pigtail Connector; Local installation range up to 10 ft (3 m); Remote installation range up to 150 ft (46 m); Compatible with Tracer Summit BMTX, Tracer MP580/581, and AH540/541 controllers. dimensions: 10.25 in. (260 mm) x 8.75 in. (222 mm) x 2.25 in. (57 mm)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFBAS-SVN065L-EN_05272020.pdfData sheet

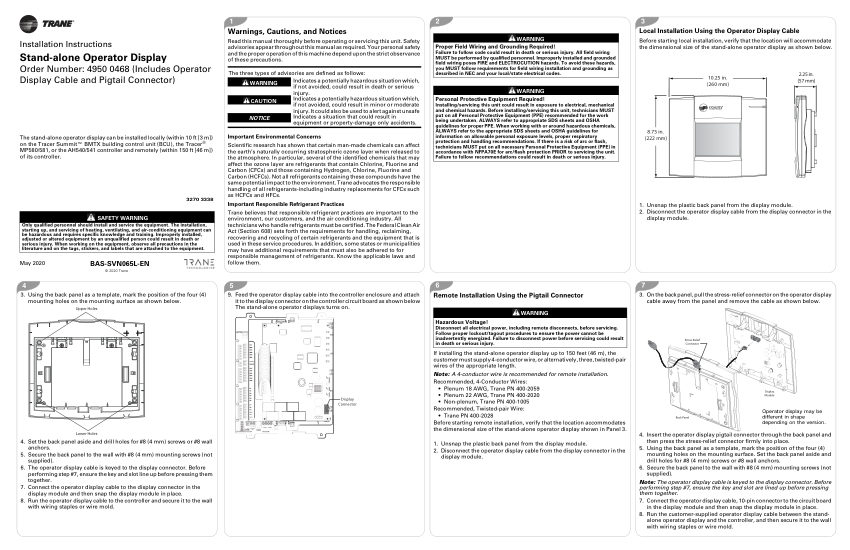

Trane BAS-SVN065L-EN_05272020 cut sheet — first page
