DIV 23 · HVACHVACCUT SHEET INDEXED

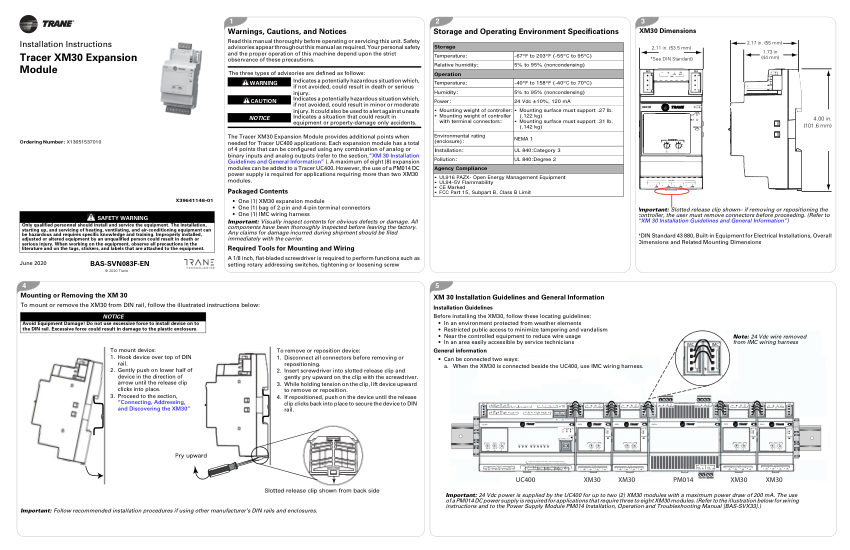

TraneTracer XM30 Expansion ModuleBAS-SVN083F-EN
Trane Expansion Module (Tracer XM). Model XM30. Operating Temperature: -40°F to 158°F (-40°C to 70°C)
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Trane
- Catalog no.
- BAS-SVN083F-EN
- Product type
- HVAC
- MasterFormat
- 23
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | BAS-SVN083F-EN |
|---|---|
| Description | Trane Expansion Module (Tracer XM). Model XM30. Operating Temperature: -40°F to 158°F (-40°C to 70°C) |
| Storage Temperature | -67°F to 203°F (-55°C to 95°C) |
| Humidity | 5% to 95% noncondensing |
| Power Consumption | 120 mA. mounting: DIN Standard |
| Dimensions | 4.00 in. x 2.17 in. x 2.11 in. (101.6 mm x 55 mm x 53.5 mm) |
| Voltage | 24 Vdc ±10%. |
