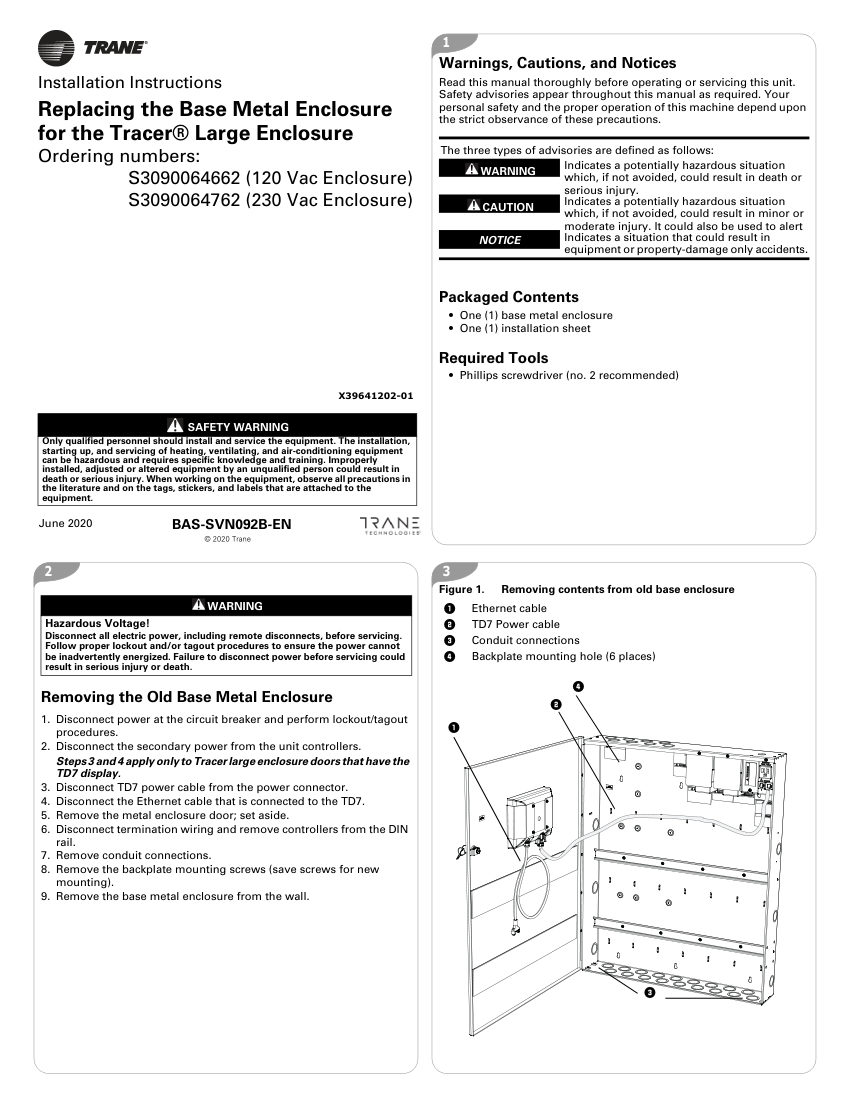

TraneBAS-SVN092B-EN
Trane Base Metal Enclosure (Trane Tracer). Model S3090064662 / S3090064762. Replaces base metal enclosure for Tracer Large Enclosure; Ordering number S3090064662 for 120 Vac; Ordering number S3090064762 for 230 Vac; Includes one base metal enclosure and one installation sheet. material: Metal
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Trane
- Catalog no.
- BAS-SVN092B-EN
- Product type
- HVAC
- MasterFormat
- 23
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | BAS-SVN092B-EN |
|---|---|
| Description | Trane Base Metal Enclosure (Trane Tracer). Model S3090064662 / S3090064762. Replaces base metal enclosure for Tracer Large Enclosure; Ordering number S3090064662 for 120 Vac; Ordering number S3090064762 for 230 Vac; Includes one base metal enclosure and one installation sheet. material: Metal |
| Mounting | Wall-mounted (6 backplate mounting holes) |
| Voltage | 120 Vac / 230 Vac. |
