TraneTracer Concierge™ System Part 1 of 2: Hardware SetupBAS-SVN135E-EN

Trane Building Automation System (Tracer). Model Tracer Concierge. Includes Tracer SC Module, PM014 Module, and UC400; Features Air-Fi Wireless Communication Interface (WCI) Module; Requires proper field wiring and grounding by qualified personnel; Includes Terminal Blocks Kit with 9 2-position, 8 3-position, and 2 4-position blocks. mounting: Mounting Kit (4 Anchors/4 Screws)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFBAS-SVN135E-EN.pdfData sheet

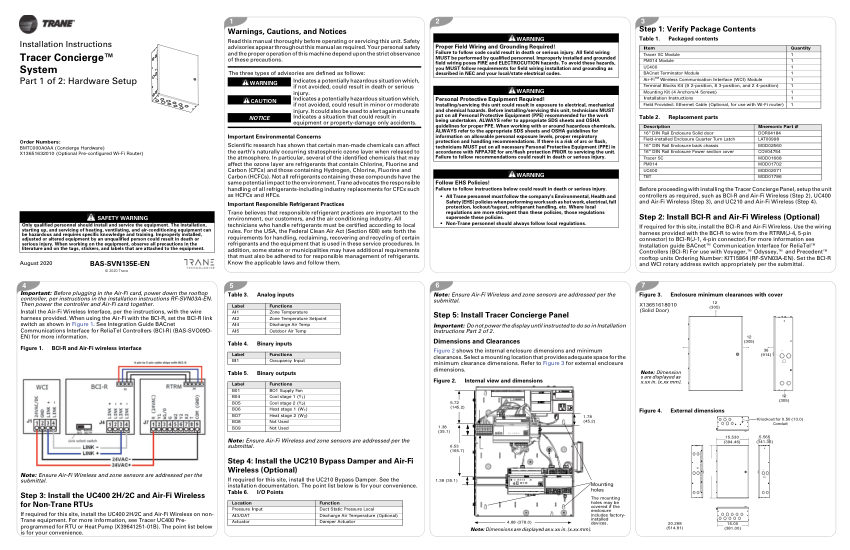

Trane BAS-SVN135E-EN cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Trane
Catalog no.
BAS-SVN135E-EN
Product type
HVAC
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberBAS-SVN135E-EN
DescriptionTrane Building Automation System (Tracer). Model Tracer Concierge. Includes Tracer SC Module, PM014 Module, and UC400; Features Air-Fi Wireless Communication Interface (WCI) Module; Requires proper field wiring and grounding by qualified personnel; Includes Terminal Blocks Kit with 9 2-position, 8 3-position, and 2 4-position blocks. mounting: Mounting Kit (4 Anchors/4 Screws)
ComplianceNEC, local/state electrical codes.
