DIV 23 · HVACHVACCUT SHEET INDEXED

TraneBAS-SVN219D-EN

Trane BMTB Bridge Retrofit Kit (Tracer Summit). Model X13651614010. Retrofit kit for Tracer 100 models EMTF, EMTG, EMTH, or EMTI; Includes frame mount BMTB, adapter plate, wall power supply, and model number label; Requires Bridge image V1.0 and Tracer Summit Version 17 SP12; Installation must be performed by qualified personnel. mounting: Frame mount

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFBAS-SVN219D-EN.pdfData sheet

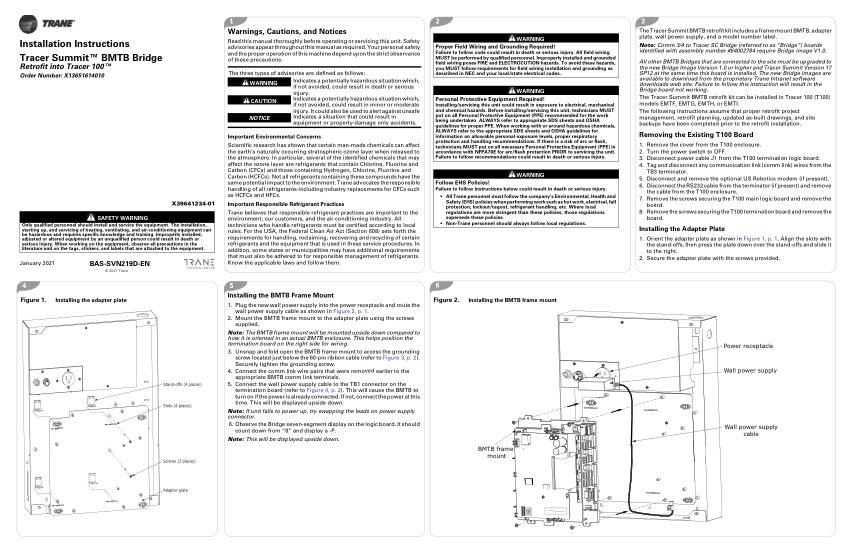

Trane BAS-SVN219D-EN cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Trane
Catalog no.
BAS-SVN219D-EN
Product type
HVAC
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberBAS-SVN219D-EN
DescriptionTrane BMTB Bridge Retrofit Kit (Tracer Summit). Model X13651614010. Retrofit kit for Tracer 100 models EMTF, EMTG, EMTH, or EMTI; Includes frame mount BMTB, adapter plate, wall power supply, and model number label; Requires Bridge image V1.0 and Tracer Summit Version 17 SP12; Installation must be performed by qualified personnel. mounting: Frame mount
ComplianceNEC, local/state electrical codes.
