TraneFrame-mounted Tracer Summit BMTX BCU / Installation InstructionsBAS-SVN221G-EN

Trane Building Control Unit (Tracer Summit). Model BMTX001CAD000, BMTX001CAD001, BMTX001EAD000, BMTX001EAD001. Requires Tracer Summit V17 software (17.077 BCU image or higher); Available with or without modem; Field wiring must comply with NEC and local electrical codes; Can replace controllers in existing equipment or mount in new enclosures. mounting: Frame-mounted

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFBAS-SVN221G-EN.pdfData sheet

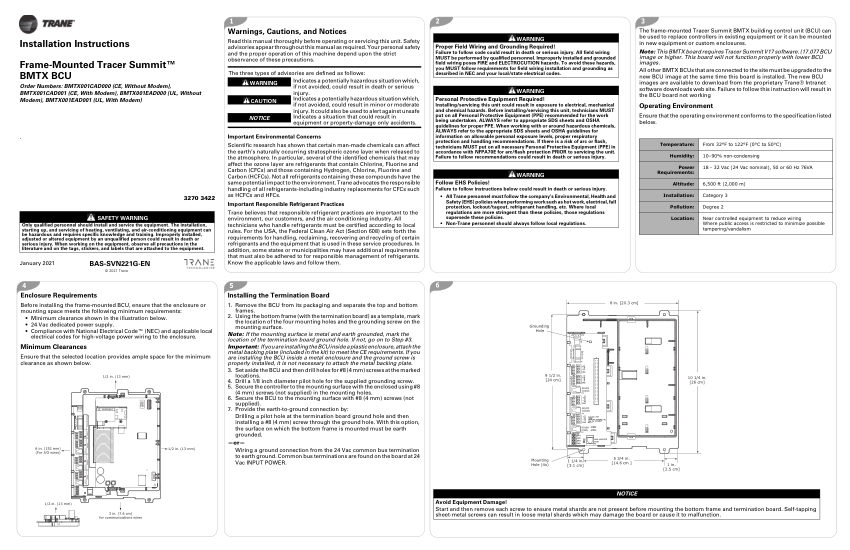

Trane BAS-SVN221G-EN cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Trane
Catalog no.
BAS-SVN221G-EN
Product type
HVAC
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberBAS-SVN221G-EN
DescriptionTrane Building Control Unit (Tracer Summit). Model BMTX001CAD000, BMTX001CAD001, BMTX001EAD000, BMTX001EAD001. Requires Tracer Summit V17 software (17.077 BCU image or higher); Available with or without modem; Field wiring must comply with NEC and local electrical codes; Can replace controllers in existing equipment or mount in new enclosures. mounting: Frame-mounted
ComplianceCE, UL.
