TranePART-SVN224E-EN

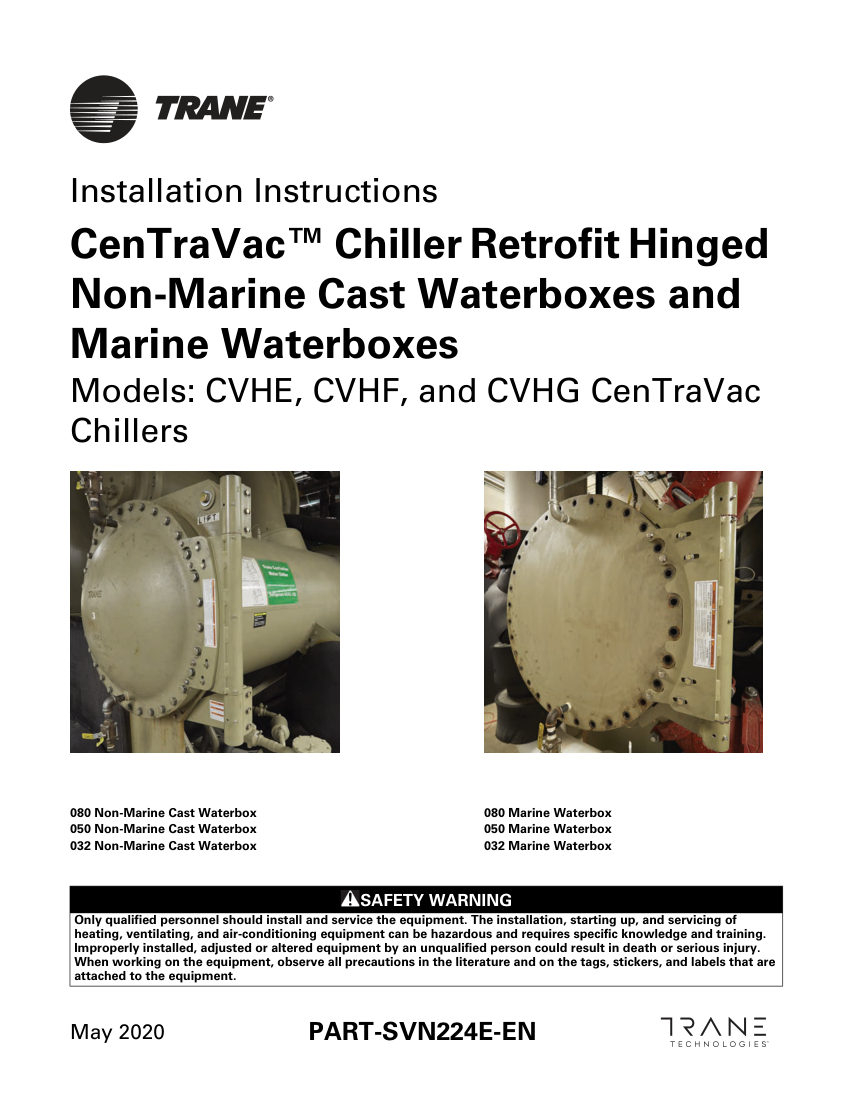

Trane Retrofit Hinged Waterbox (Chiller Waterbox). Model CVHE, CVHF, CVHG. Compatible with Trane CenTraVac Chillers Models CVHE, CVHF, and CVHG; Available in Non-Marine Cast and Marine variants; Sizes include 032, 050, and 080; Installation requires qualified personnel and proper PPE. material: Cast (Non-Marine), Marine
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Trane
- Catalog no.
- PART-SVN224E-EN
- Product type
- HVAC
- MasterFormat
- 23
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | PART-SVN224E-EN |
|---|---|
| Description | Trane Retrofit Hinged Waterbox (Chiller Waterbox). Model CVHE, CVHF, CVHG. Compatible with Trane CenTraVac Chillers Models CVHE, CVHF, and CVHG; Available in Non-Marine Cast and Marine variants; Sizes include 032, 050, and 080; Installation requires qualified personnel and proper PPE. material: Cast (Non-Marine), Marine |
| Mounting | Hinged. |
