DIV 23 · HVACHVACCUT SHEET INDEXED

TraneRT-SVN046A-EN

Trane Vertical and Horizontal Power Exhaust Medium Foundation Packaged Rooftop (Packaged Rooftop Unit). Model BAYPWRX310A, BAYPWRX311A. Capacity: 7.5 to 12.5 Tons

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFRT-SVN046A-EN.pdfData sheet

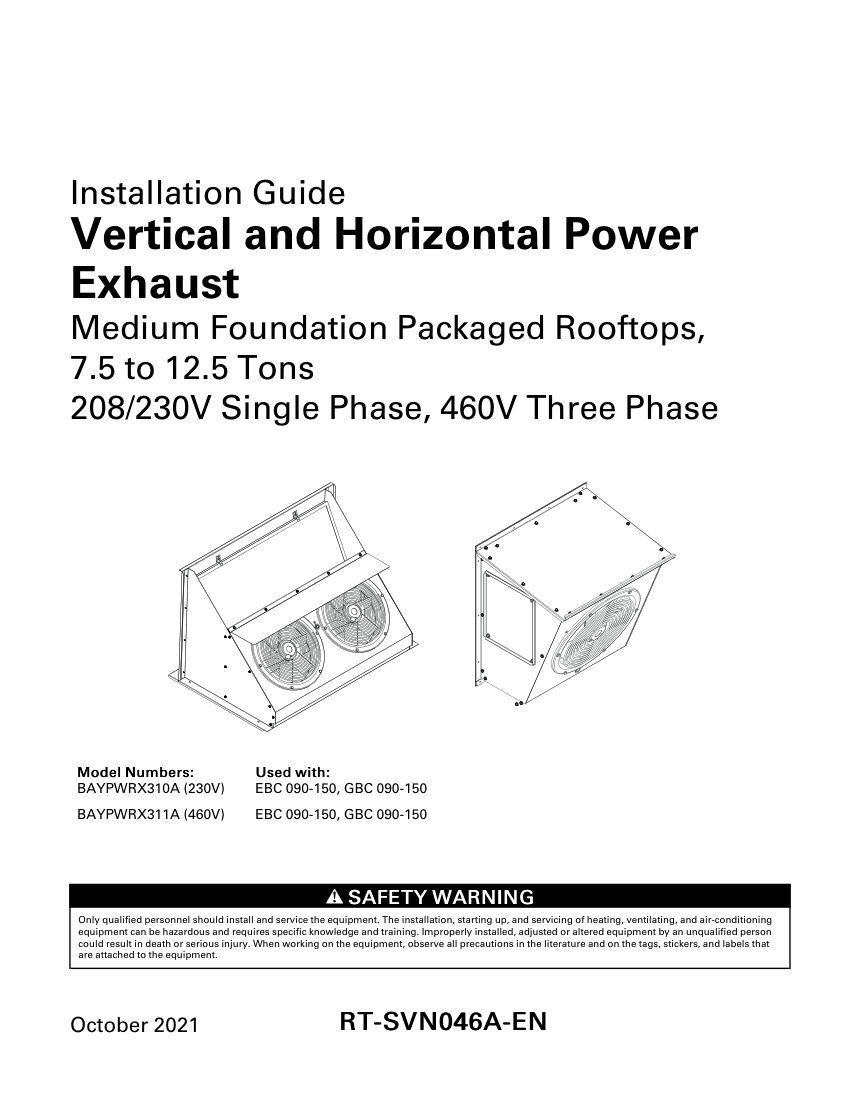

Trane RT-SVN046A-EN cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Trane
Catalog no.
RT-SVN046A-EN
Product type
HVAC
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberRT-SVN046A-EN
DescriptionTrane Vertical and Horizontal Power Exhaust Medium Foundation Packaged Rooftop (Packaged Rooftop Unit). Model BAYPWRX310A, BAYPWRX311A. Capacity: 7.5 to 12.5 Tons
Compatible ModelsEBC 090-150, GBC 090-150
Installation OrientationVertical and Horizontal; Power Exhaust Configuration. mounting: Vertical and Horizontal
ComplianceNEC, OSHA, NFPA 70E
Voltage208/230V Single Phase, 460V Three Phase.
  • Official cut sheet, indexed
  • Auto-matched to your schedule
  • Cover + TOC, one click
