DIV 23 · HVACHVACCUT SHEET INDEXED

TraneRT-SVX23R-EN

Trane Rooftop Heat Pump (Packaged Rooftop Air Conditioners). Model WSC036H-WSC060H, WSC092H, WSC102H, WSC120H, W/DHC036H-W/DHC120H. Capacity range: 3 to 10 Tons

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFRT-SVX23R-EN.pdfData sheet

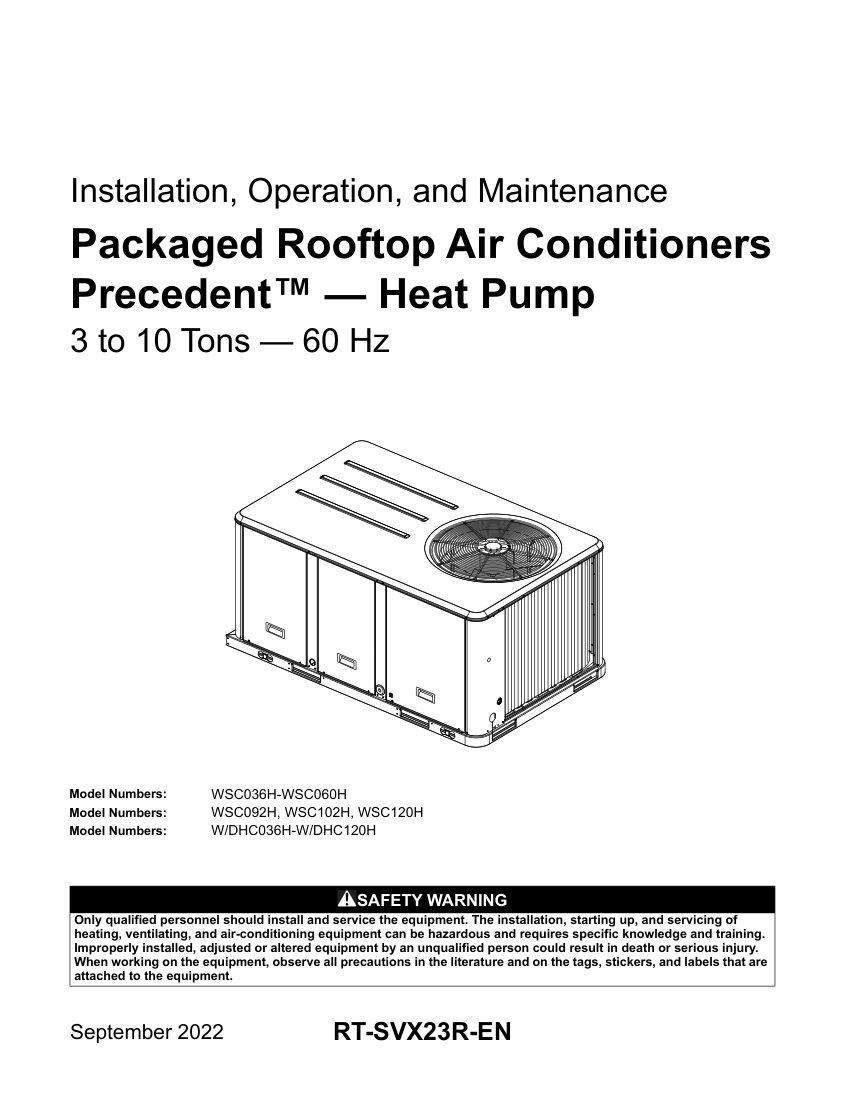

Trane RT-SVX23R-EN cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Trane
Catalog no.
RT-SVX23R-EN
Product type
HVAC
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberRT-SVX23R-EN
DescriptionTrane Rooftop Heat Pump (Packaged Rooftop Air Conditioners). Model WSC036H-WSC060H, WSC092H, WSC102H, WSC120H, W/DHC036H-W/DHC120H. Capacity range: 3 to 10 Tons
System typeHeat Pump
Electrical frequency60 Hz
Installation typePackaged Rooftop. mounting: Rooftop
ComplianceNEC, OSHA, NFPA 70E, Federal Clean Air Act Section 608
Voltage60 Hz.
  • Official cut sheet, indexed
  • Auto-matched to your schedule
  • Cover + TOC, one click
