DIV 23 · HVACHVACCUT SHEET INDEXED

TraneUH-SVN001B-EN

Trane Combustion Air Inlet Kit. Model UH-SVN001B-EN. For Separated Combustion Tubular Gas Fired Unit Heaters; 5-inch kit for 100,000 to 250,000 Btu/h units; 6-inch kit for 300,000 to 400,000 Btu/h units; Supplemental to UH-SVX002*-EN and UH-SVX003*-EN manuals. connectionSize: 5-inch or 6-inch

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFUH-SVN001B-EN.pdfData sheet

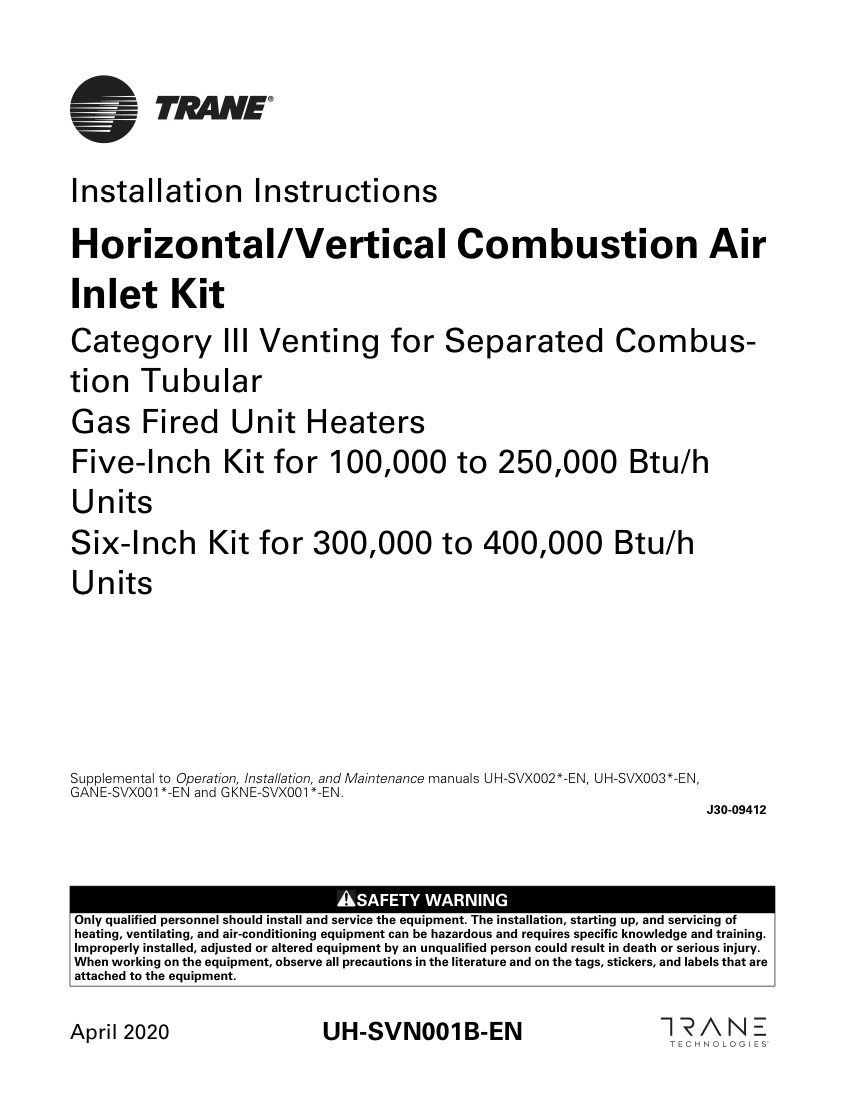

Trane UH-SVN001B-EN cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Trane
Catalog no.
UH-SVN001B-EN
Product type
HVAC
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberUH-SVN001B-EN
DescriptionTrane Combustion Air Inlet Kit. Model UH-SVN001B-EN. For Separated Combustion Tubular Gas Fired Unit Heaters; 5-inch kit for 100,000 to 250,000 Btu/h units; 6-inch kit for 300,000 to 400,000 Btu/h units; Supplemental to UH-SVX002*-EN and UH-SVX003*-EN manuals. connectionSize: 5-inch or 6-inch
MountingHorizontal/Vertical
ComplianceCategory III Venting.
