DIV 09 · FINISHESDRYWALL / GYPSUM PANELSCUT SHEET INDEXED

USGSheetrock® Brand MH Firecode® C Panels Gypsum Base BoardMH1174

USG Firecode C Panel (Gypsum Base Board). Model MH1174. Class A material with flame spread 15 and smoke developed 0; Noncombustible gypsum core provides superior fire resistance; Suitable for shear and nonshear walls; Maximum support spacing of 24 in. o.c. for 1/2 in. thickness. material: Gypsum base with mineral core and smooth manila face paper

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFMH1174.pdfData sheet

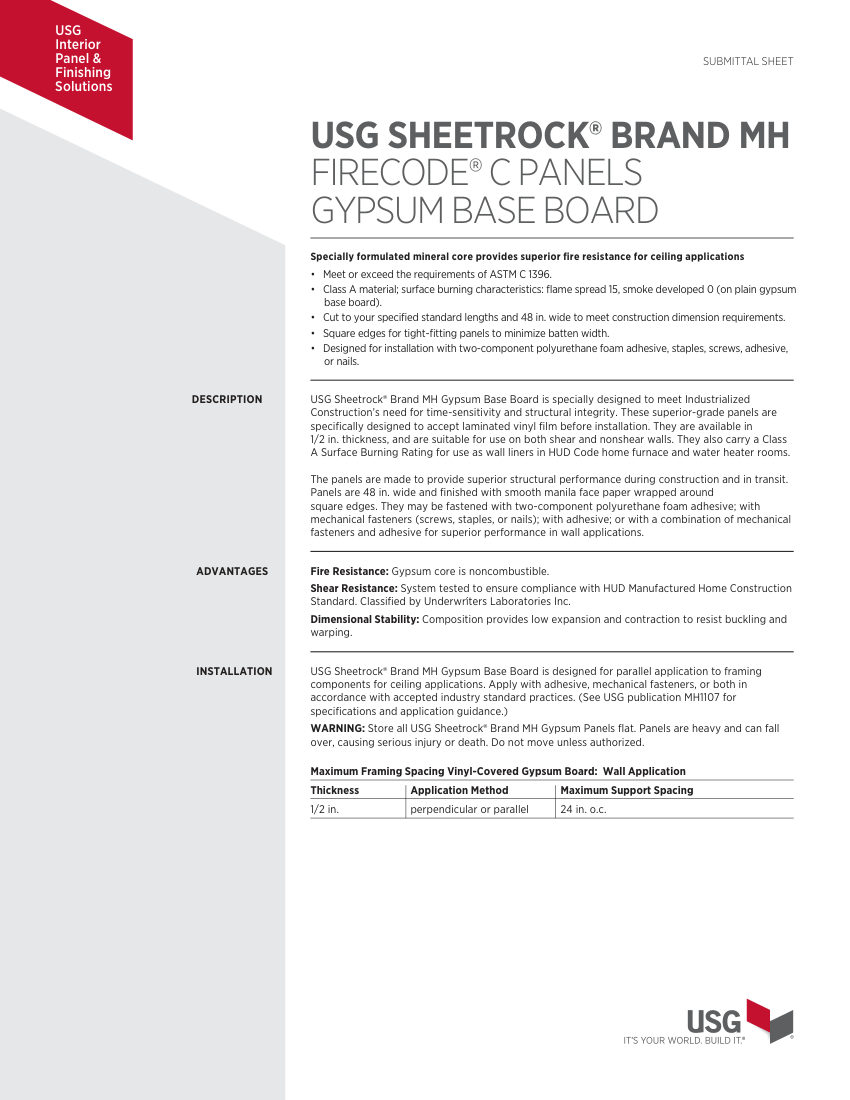

USG MH1174 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
USG
Catalog no.
MH1174
Product type
Drywall / Gypsum Panels
MasterFormat
09 21 16
Cut sheet
PDF · manufacturer current

Product details

Catalog numberMH1174
DescriptionUSG Firecode C Panel (Gypsum Base Board). Model MH1174. Class A material with flame spread 15 and smoke developed 0; Noncombustible gypsum core provides superior fire resistance; Suitable for shear and nonshear walls; Maximum support spacing of 24 in. o.c. for 1/2 in. thickness. material: Gypsum base with mineral core and smooth manila face paper
End connectionSquare edges
FinishSmooth manila face paper
MountingAdhesive, staples, screws, or nails
Dimensions1/2 in. thickness, 48 in. wide
ComplianceASTM C 1396, Class A Surface Burning Rating, HUD Manufactured Home Construction Stan
