DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Zurn350-2-12-12

Zurn Double Check Valve Assembly (Backflow Prevention). Model 350-2-12-12. Protects against backsiphonage and backpressure; Lead-free compliant (<0.25% weighted average lead content); Maximum working water temperature 140°F; Includes NRS shut-off valves as standard. material: Ductile Iron ASTM A 536 body, 300 Series Stainless Steel internals

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF350-2-12-12.pdfData sheet

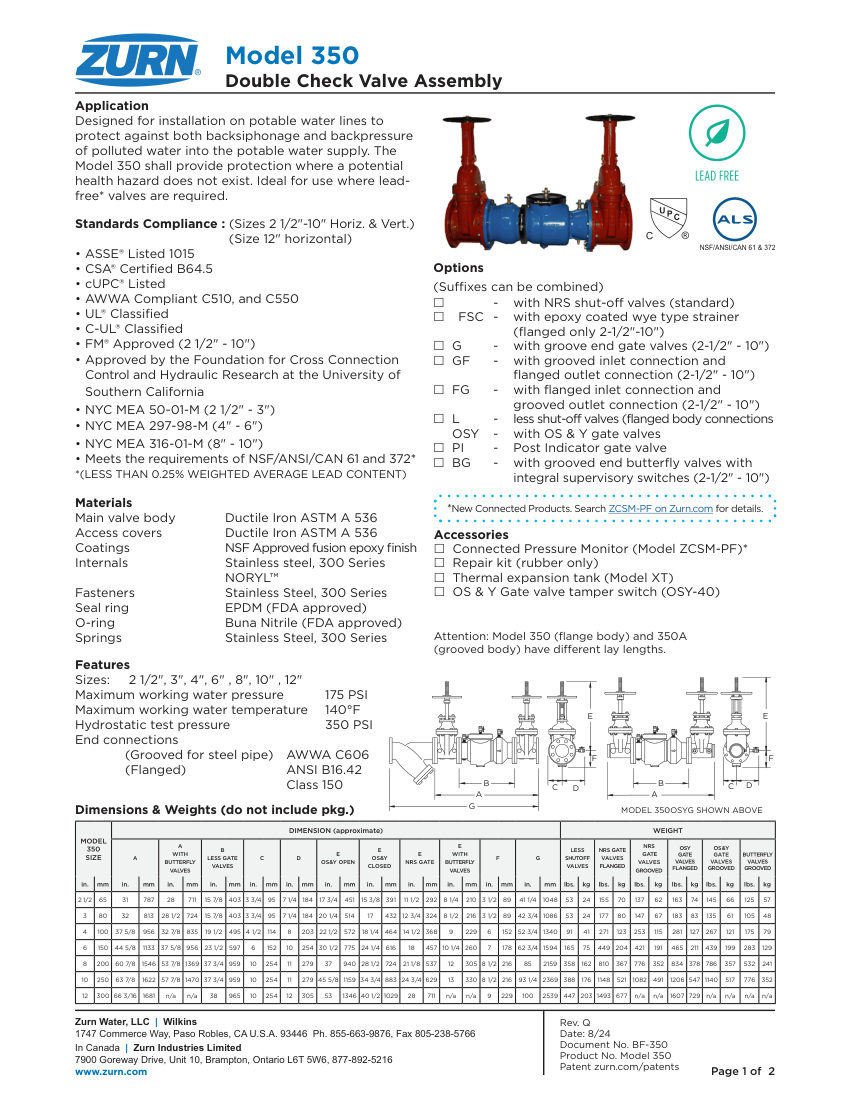

Zurn 350-2-12-12 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
350-2-12-12
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number350-2-12-12
DescriptionZurn Double Check Valve Assembly (Backflow Prevention). Model 350-2-12-12. Protects against backsiphonage and backpressure; Lead-free compliant (<0.25% weighted average lead content); Maximum working water temperature 140°F; Includes NRS shut-off valves as standard. material: Ductile Iron ASTM A 536 body, 300 Series Stainless Steel internals
Connection size2 1/2" - 12"
End connectionGrooved (AWWA C606) or Flanged (ANSI B16.42 Class 150)
Pressure Rating175 PSI max working, 350 PSI hydrostatic test
FinishNSF Approved fusion epoxy
MountingHorizontal & Vertical.
