DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Zurn375W1 — Connected Backflow Preventer W/Wireless Monitor375W1

Zurn Reduced Pressure Principle Backflow Preventer with Wireless Monitor (Backflow Prevention). Model 375W1. Monitors relief valve discharge and optional system pressure; Transmits data 24/7 to Zurn plumbSMART portal via LoRa/LTE; Maximum working water temperature 140°F; Includes integral relief valve monitor. connectionSize: 2 1/2", 3", 4", 6", 8", 10"

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF375W1.pdfData sheet

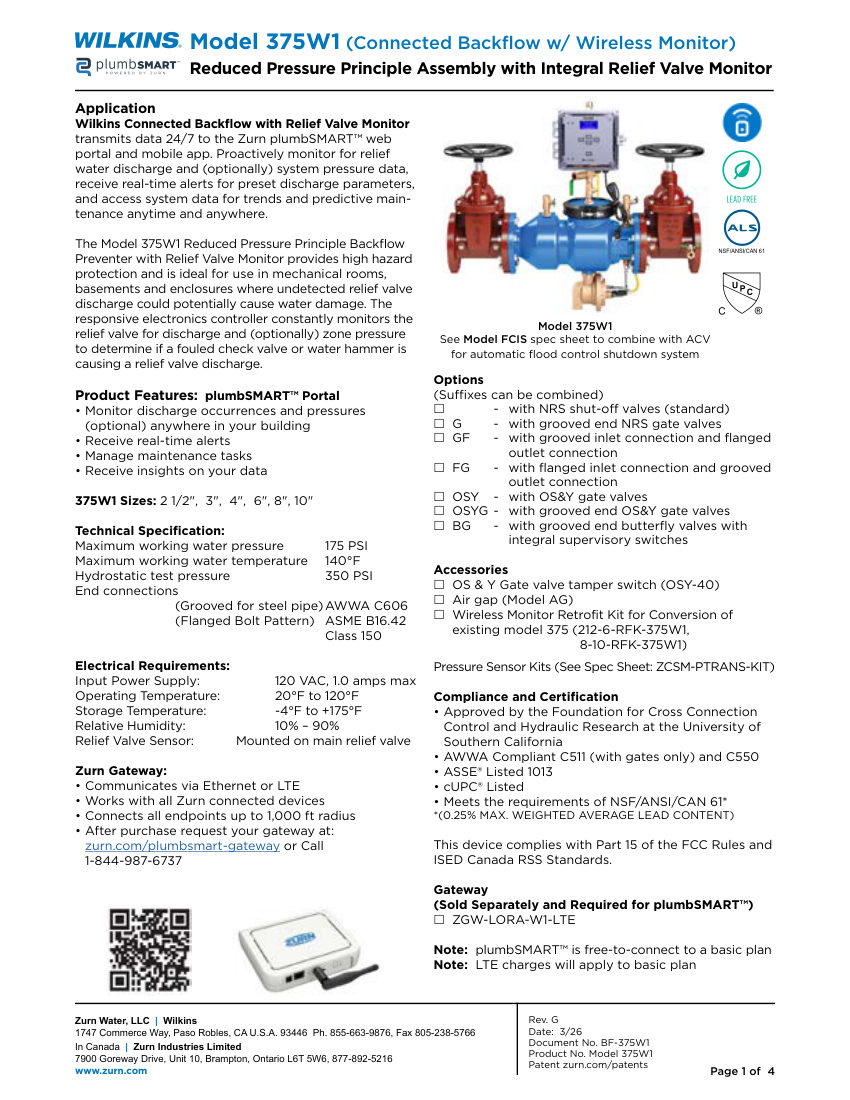

Zurn 375W1 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Zurn
Catalog no.
375W1
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number375W1
DescriptionZurn Reduced Pressure Principle Backflow Preventer with Wireless Monitor (Backflow Prevention). Model 375W1. Monitors relief valve discharge and optional system pressure; Transmits data 24/7 to Zurn plumbSMART portal via LoRa/LTE; Maximum working water temperature 140°F; Includes integral relief valve monitor. connectionSize: 2 1/2", 3", 4", 6", 8", 10"
End connectionGrooved (AWWA C606) or Flanged (ASME B16.42 Class 150)
Pressure Rating175 PSI max working; 350 PSI hydrostatic test
ComplianceNSF/ANSI/CAN 61, ASSE 1013, cUPC, AWWA C511/C550, FCC Part 15
Voltage120 VAC, 1.0 amps max.
